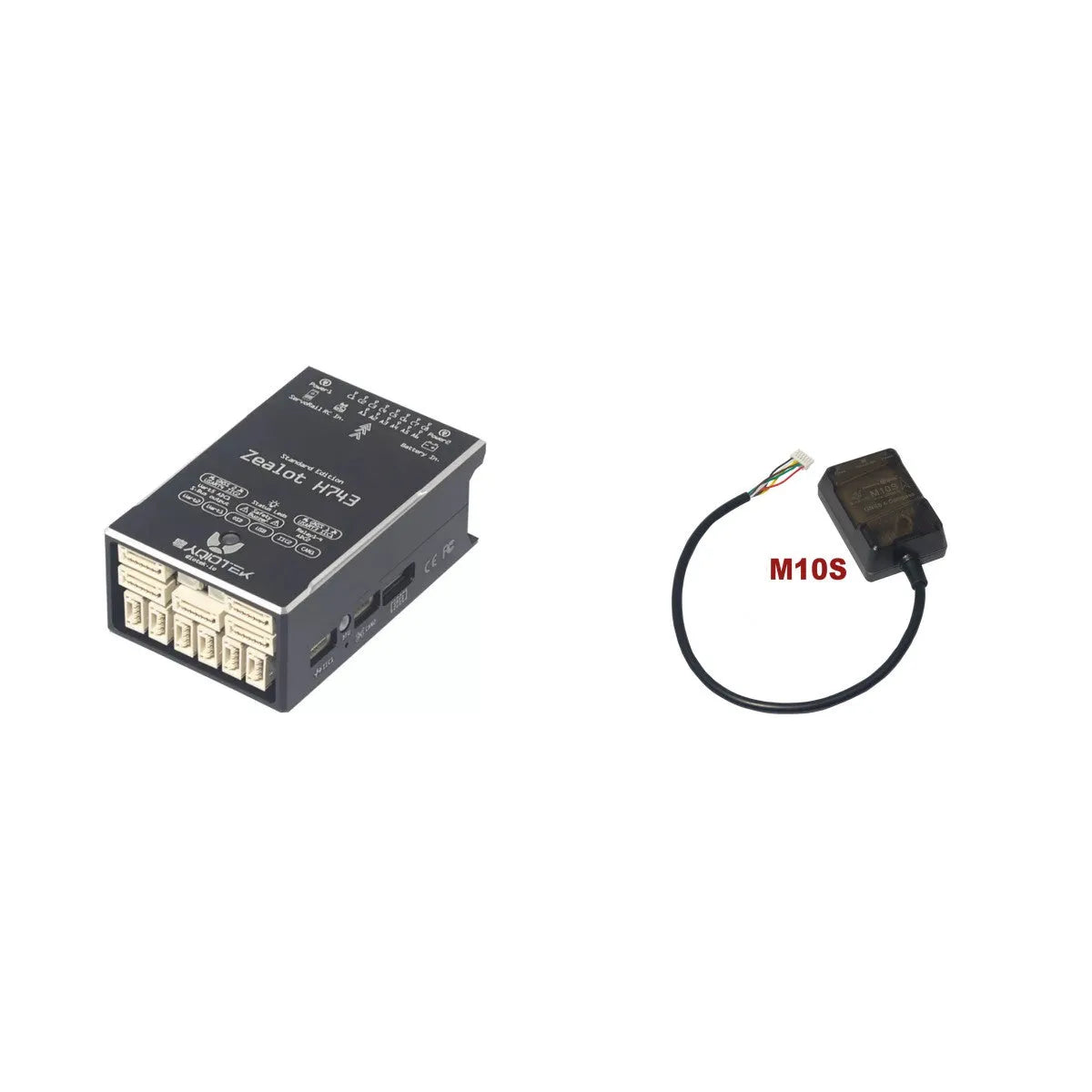

QIOTEK ZealotH743 PIXHAWK Flight Control PIX Vertical RC Helicopter Multi Axis with with M10S TTL GNSS

Description

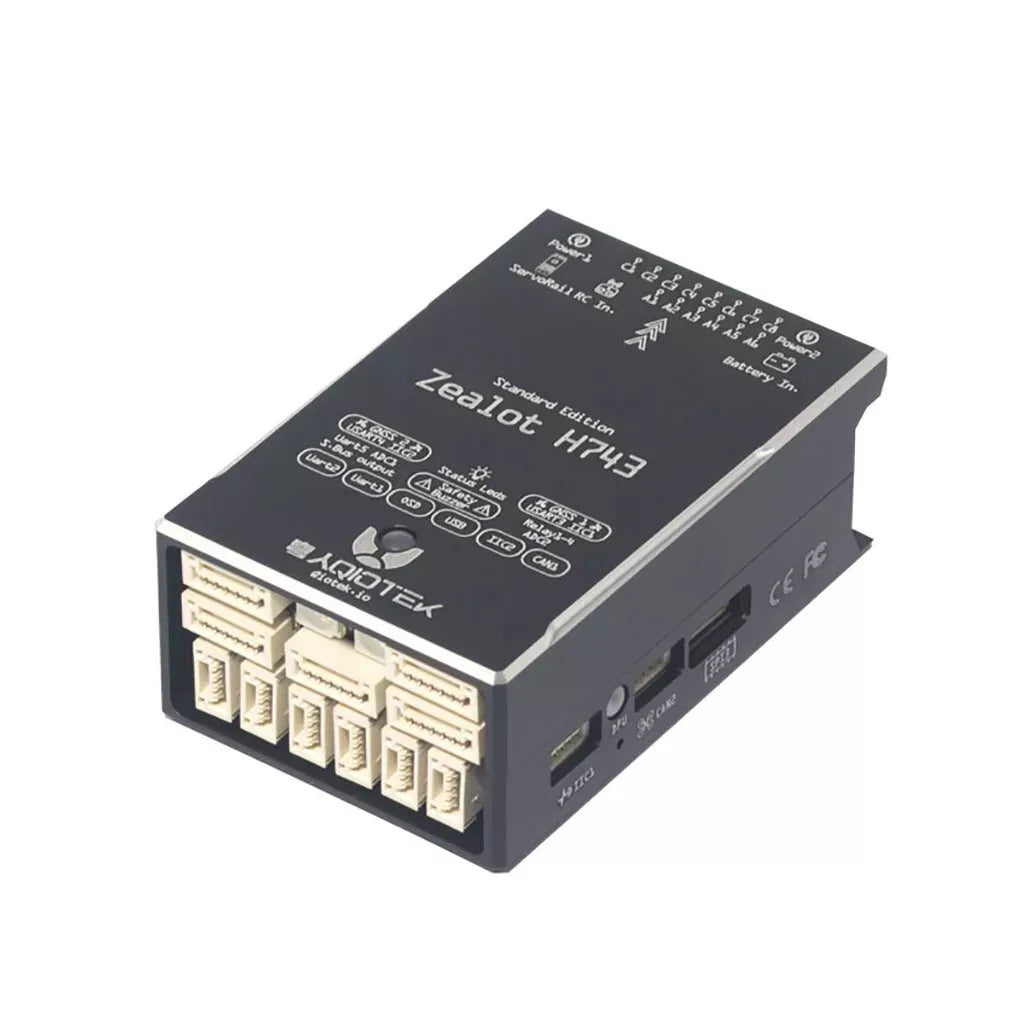

The QioTek ZealotH743 is an internal vibration dampened autopilot with a protective CNC metal case for ruggedness.
It features fully redundant sensors, an expanded number of outputs, temperature-controlled IMUs,
and has an integrated AT7456E OSD chip.
The Zealot-H743 has higher specs than many competitors!
The Zealot H743 supports all versions of Ardupilot from 4.2.0 including ArduPlane, ArduCopter, ArduRover, ArduSub.

Specifications
Processor:
MCU - STM32H743VIT6
36KB FRAM - FM25V02

Standard Edition Sensors
Gyro/Accelerometers: ICM42688P, ICM40605, ICM20689
Barometers: DPS3018 *2
Compass: QMC5883L

Power
4.1-6.0V DC from USB (internal circuitry and RX only) or via 2 x PowerModule connectors, or via internal BEC off VBAT input pin. All 5V pins are powered when USB, or Power Module(s), or VBAT input is used.
Internal 5V, 1.5A internal BEC directly can be used with up to 6S LIPO batteries to supply board and peripheral power supply up to 1.5A max with voltage monitoring via BAT2 monitor(500ma max recommended).
ADC monitoring of board voltage
ADC monitoring of Servo/Output’s power rail

Interfaces/Connectivity
14 PWM Outputs with independent power rail for external power source
4 Relay outputs
MicroSD card slot
Micro USB or remote USB via a JST_GH connector
Built-in RGB LED (On three sides)
Built-in AT7456E OSD
FD-CAN interface *2
Two voltage & current monitoring and servo rail voltage monitoring(support to 36V)
Two ADC inputs(default one for RSSI, one for Airspeed sensor, both support to 6.6V)
Servo rail BEC independent power input for servos
Built-in BEC (6S 1.5A) power input (share power2 module voltage monitoring)
UART interface *5

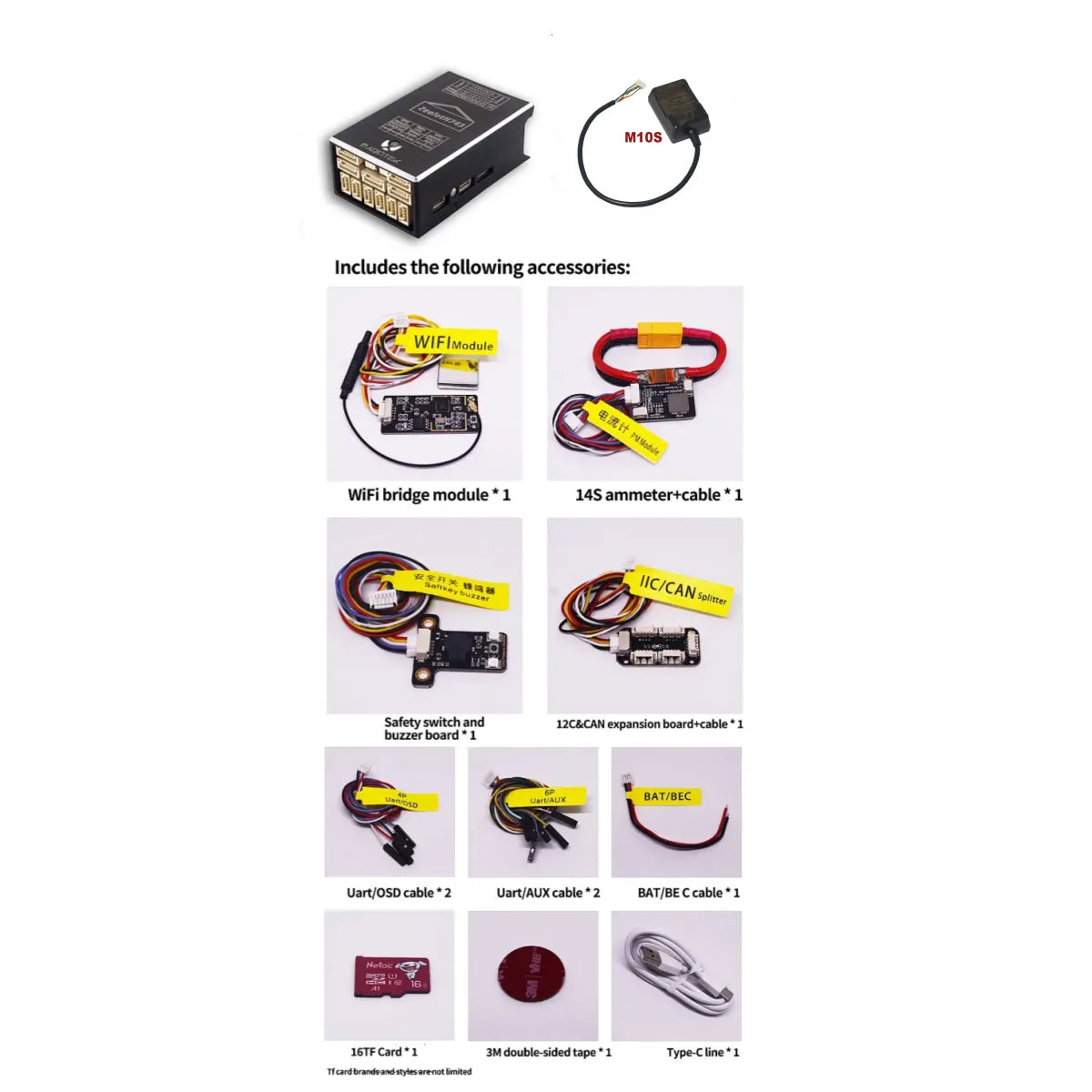

Package Included:
1x ZealotH743 PIXHAWK Flight Control
1x M10S TTL GNSS Module
1x Wifi Bridge Module
1x 14S ammeter+cable
1x External safety Switch/Buzzer
1x External 60V/14S power module
1x I2C/CAN splitter board
2x Uart/OSD cable
2x Uart/AUX cable
1x BAT/BEC cable
1x 32G SD Card for logging, scripts and terrain data
1x Double tape
1x USB-C/Standard USB cable
