Description:
Brand: DarwinFPV

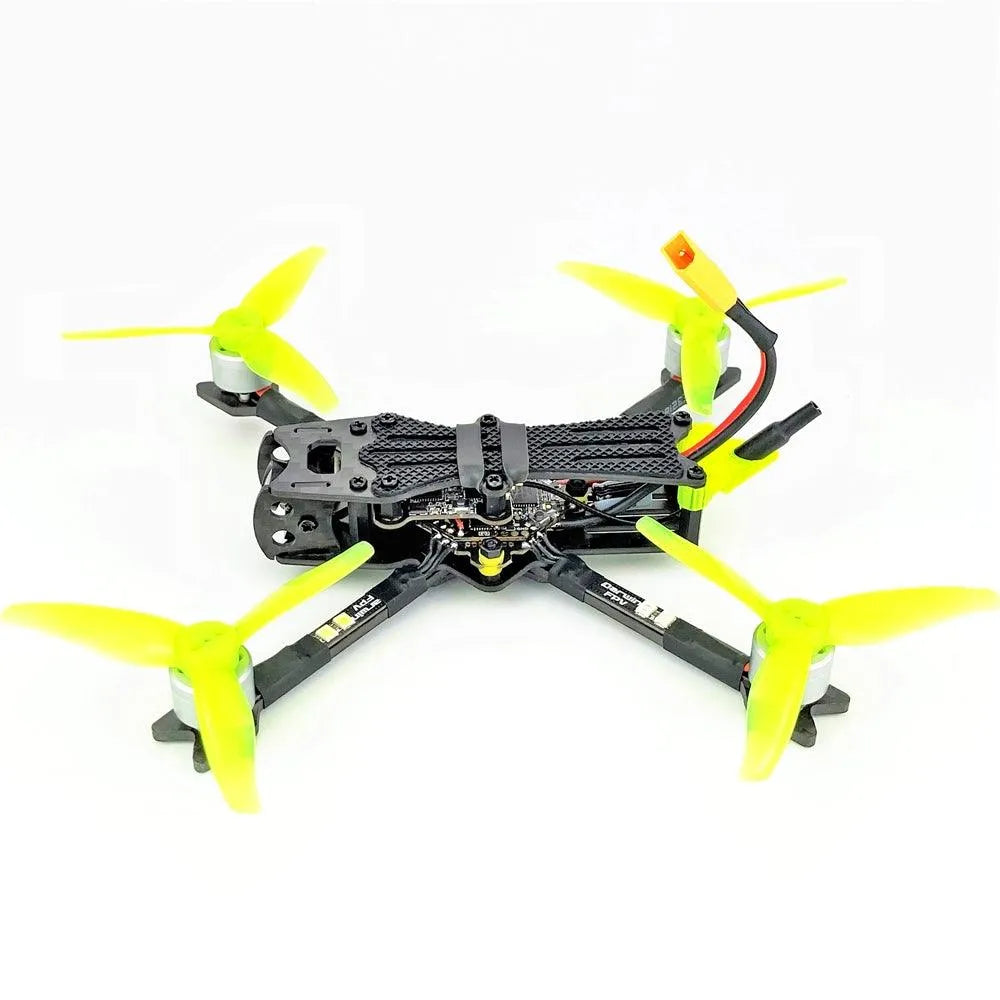

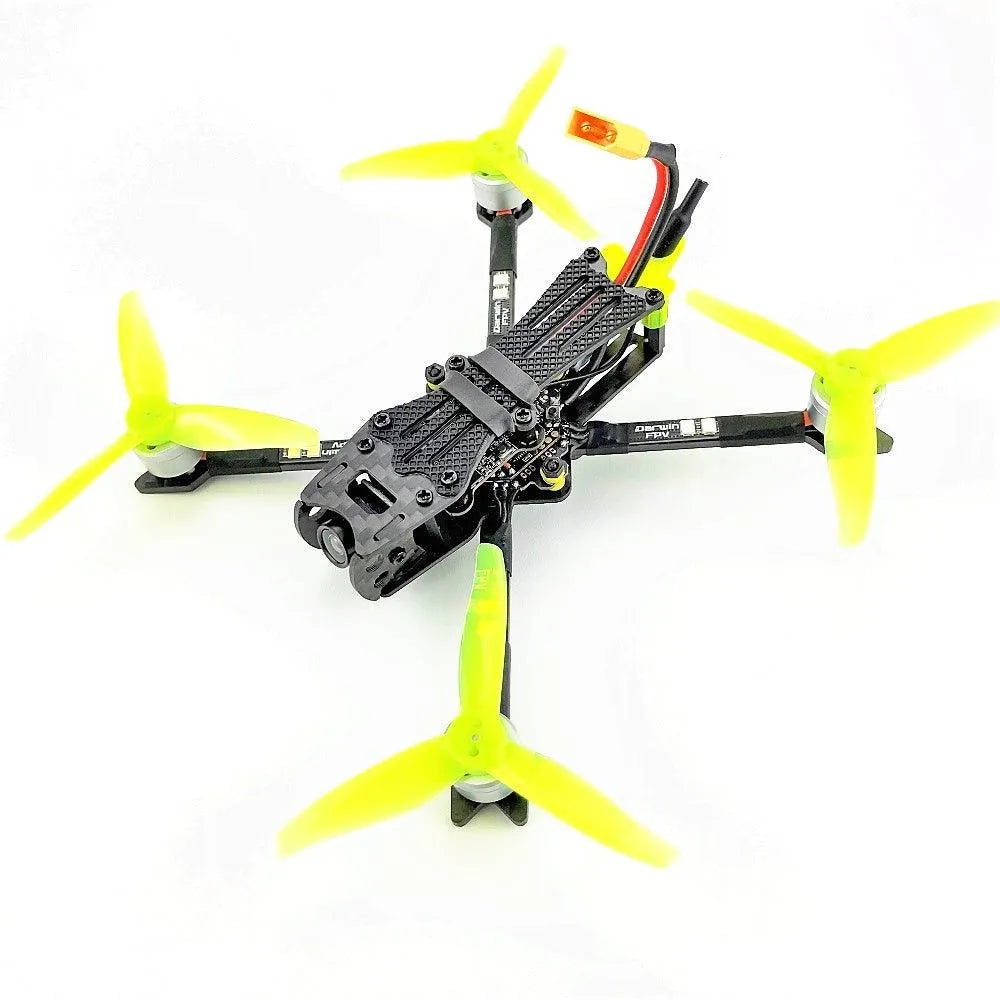

Item Name: Baby Ape Pro 142mm 3" FPV Drone
Color: Yellow

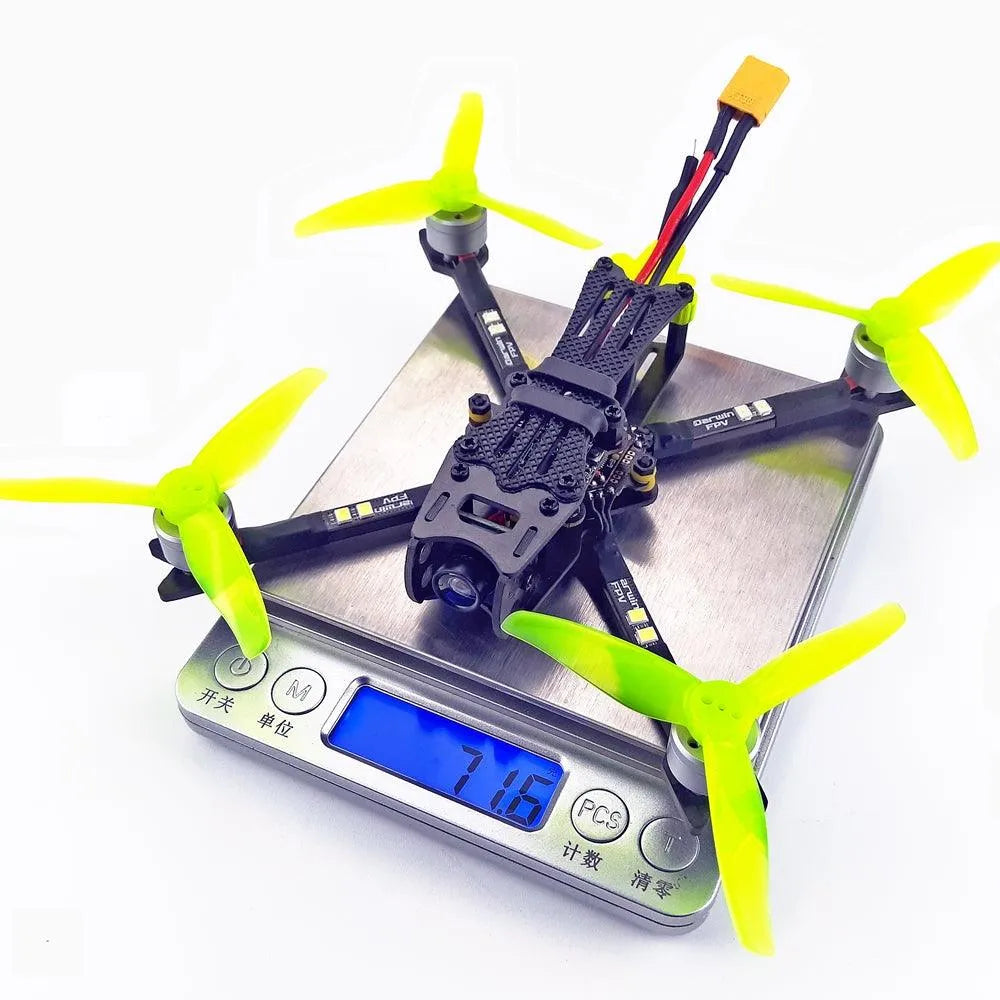

Weight: 71.6g

Specifications:
Camera
Resolution:1200TVL
mage Sensor: 1/3" CMos Sensor
Input: DC 3.7-18V
TV System: PAL/NTSC

1104 4300KV 2-3S Brushless Motor

F411 AIO Flight Controller
Main control chip: STM32F411
Sensor: MPU6500
Integrated OSD
PPMDSM/IBUS/UAR share: UART1-RX
Mounting holes distance: 25.5*25 .5mm
Supports Betaflight firmware
Baro: No
Black Box: No

5.8G 40CH 0mW/25mw/200mw switchable VTX
Supports TBS SmartAudio
Transmitting power: 0mW/25mW/100mW/200mW switchable
Channel: 40CH
Full video format: NTSC/PAL
Input voltage: 7V~24V
Power dissipation: +12V/600MW
Size: 25×20×6mm
Weight: ≤3.2g (except antenna)
With copper pipe mini antenna (ipex antenna)

AIO 4 IN115A BLHeli S ESC
Input voltage: 1-3S LIPo
Continuous current: 15A
Peak current:17A (10S)
BEC output: No
MCU: 48MHz EFM8BB21F16G
Protocol: DSHOY/Oneshot/MultiHhot
BLHeli-S Firmware target: S-H-50
Telemetery: No
Current Sensor:No
Main control chip:EFM8BB21
Firmware upgrade: Supports Dshot600 Oneshot125
MOS: 3*3


Material: PC
Mounting hole: 1.5mm
Center thickness: 5.5mm
Quantity: 2 pairs
Weight: 1.18g a pair

Lipo Battery
Recommend 2-3S 300-450mah(Not included)

Package Included:
1*DarwinFPV Baby Ape Pro RC Drone
