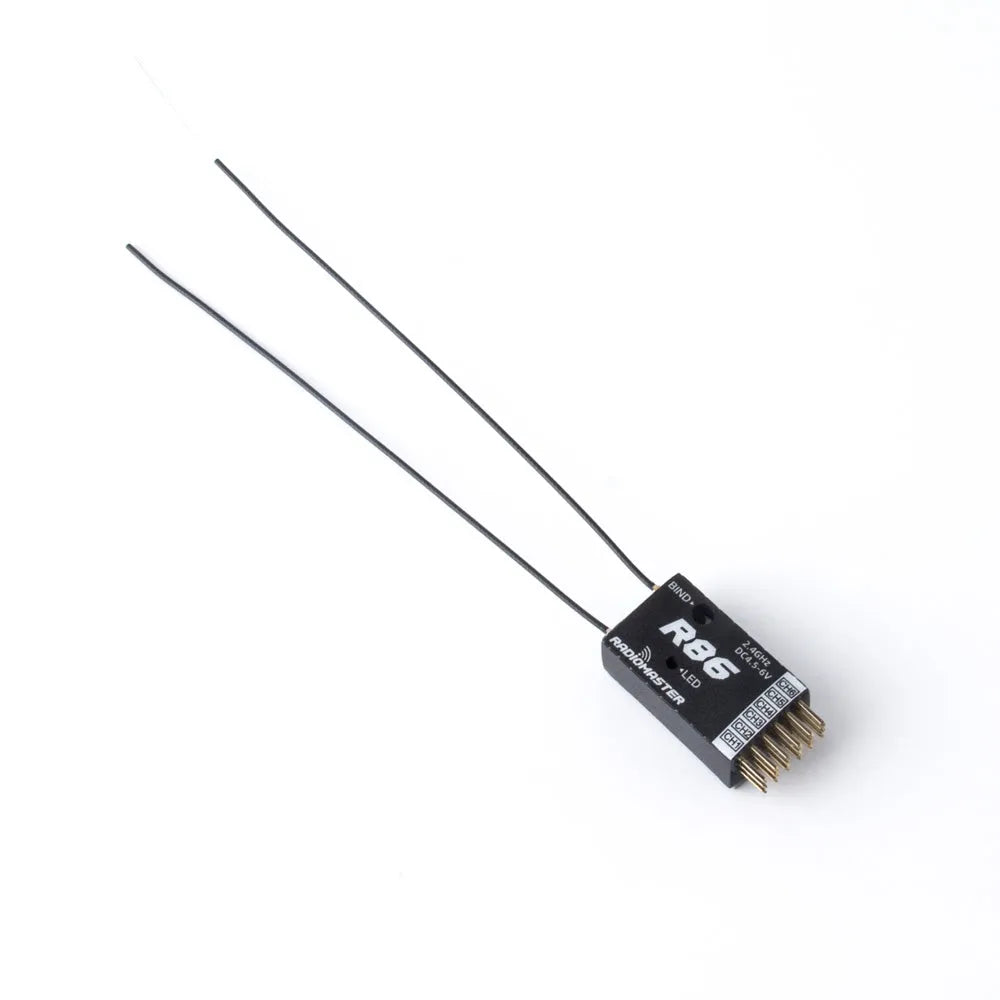

RadioMaster R86 2.4GHz 6CH Over 1KM PWM Nano Receiver Compatible FrSky D8 Support Return RSSI for RC Drone

Description:
Brand Name: RadioMaster
Item Name: R86 Nano Receiver
Model: R86
Weight: 4.8g
Size: 28*16.5*11 mm
Channels: 6 channels
Frequency range: 2400-2483.5Mhz
Power input range: 4.5-6V
Signal format: Frsky D8 Compatible
Output format: PWM
Support return: support return RSSI
Range: more than 1km
Antenna length: 15 cm

Bind method:
1. Press and hold the BIND button on the receiver then connect power. After approximately 3 seconds, the receiver LED will be RED, the receiver is now in bind mode
2. Select the D8 protocol for the multi-protocol menu of your remote control, and press the [BIND] option, the red light of the receiver will flash indicating successful bind
3. Exit bind mode on your remote control and disconnect power to the receiver then power the receiver once more. The LED will now be solid RED indicated the bind is now done. If not please repeat step 1 and 2

Fail-safe Protection:
1. Press the BIND button once within 10 seconds of th eceiver being powered on, and the receiver will save all the current channel values of the remote control as the fail-safe value
2. 10 seconds after the receiver is powered on, the BIND button function will be disabled to prevent accidental changes to to the fail-safe settings while preparing the model for flight

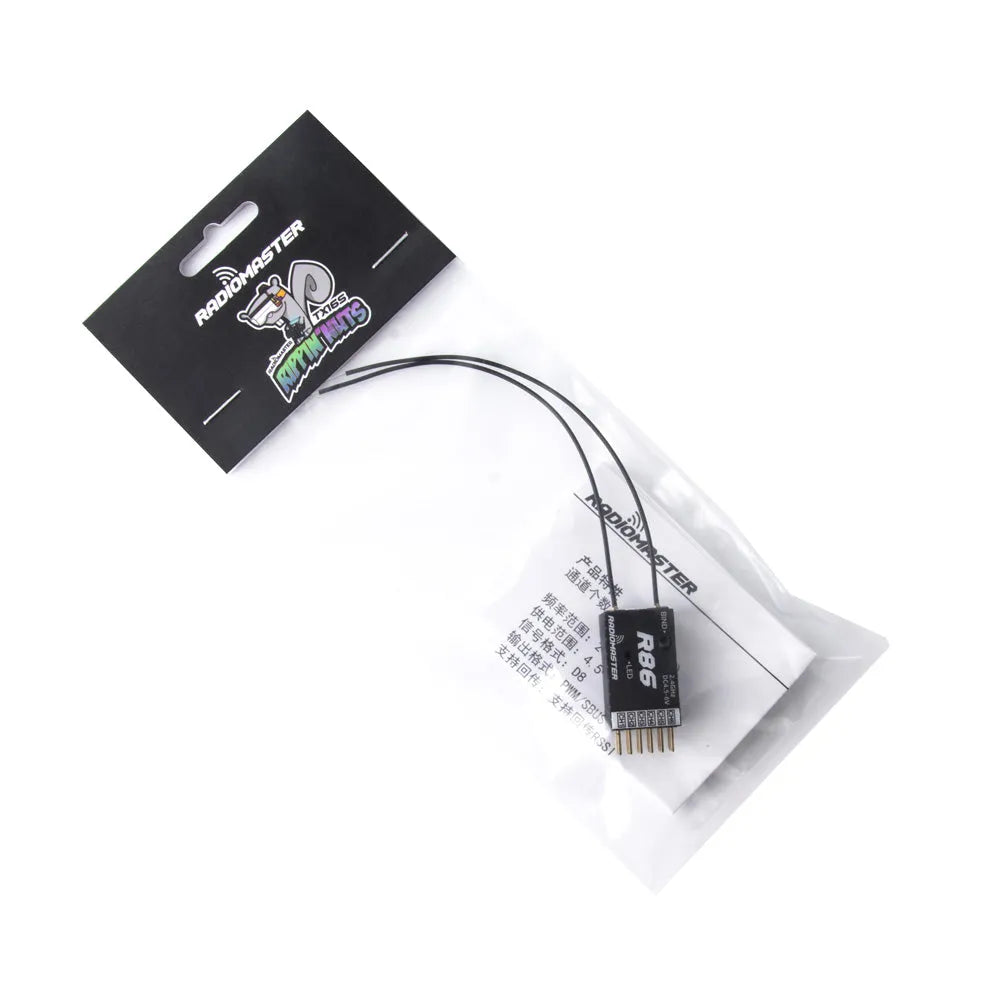

Package Included:
1 x R86 Nano Receiver
