Please notice that this chip is no longer available. Is it only available for wholesale (over 600 chips in one order)

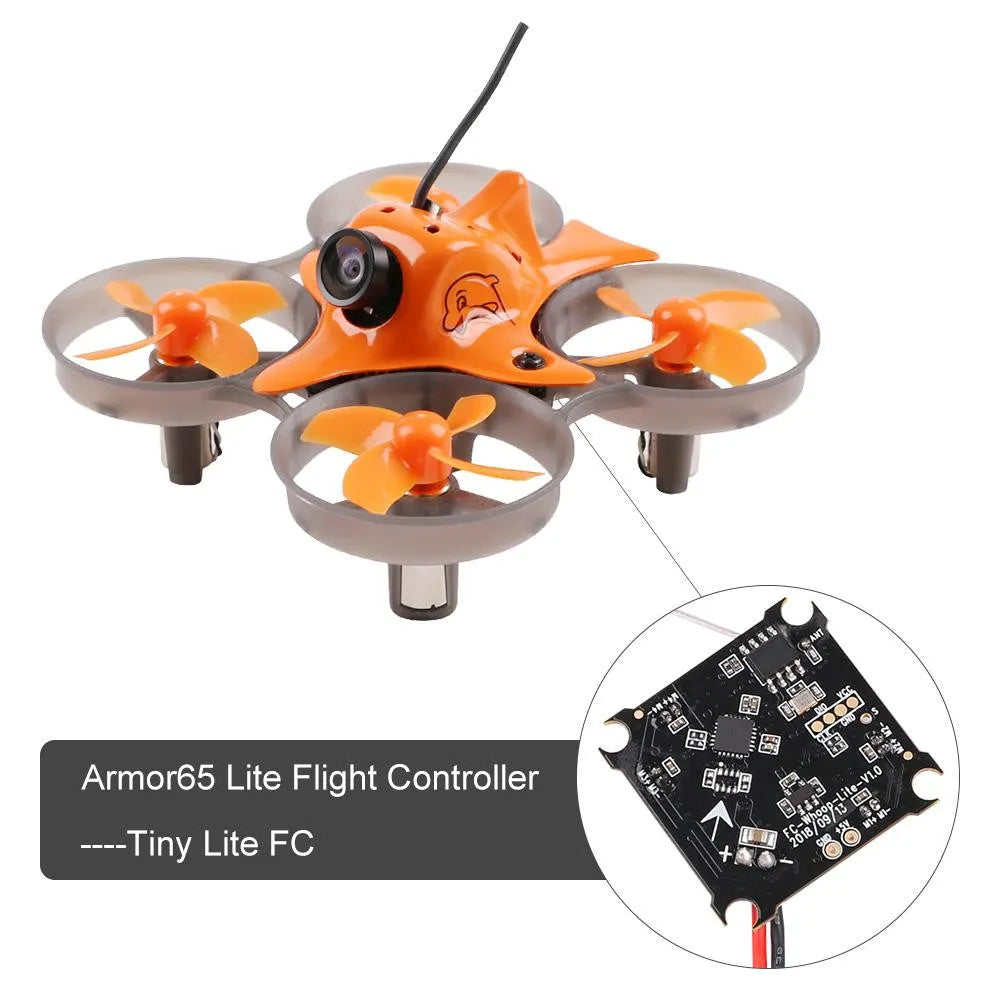

Makerfire Tiny Lite FC Flight Controller NFE_Silverware for Armor 65 Lite (Bayang Protocol)

Specifications:
CPU: STM32F030
Gyro: MPU6050
MOS: 6A. Supports motors such as 615mm/720mm/8020mm/8520mm.

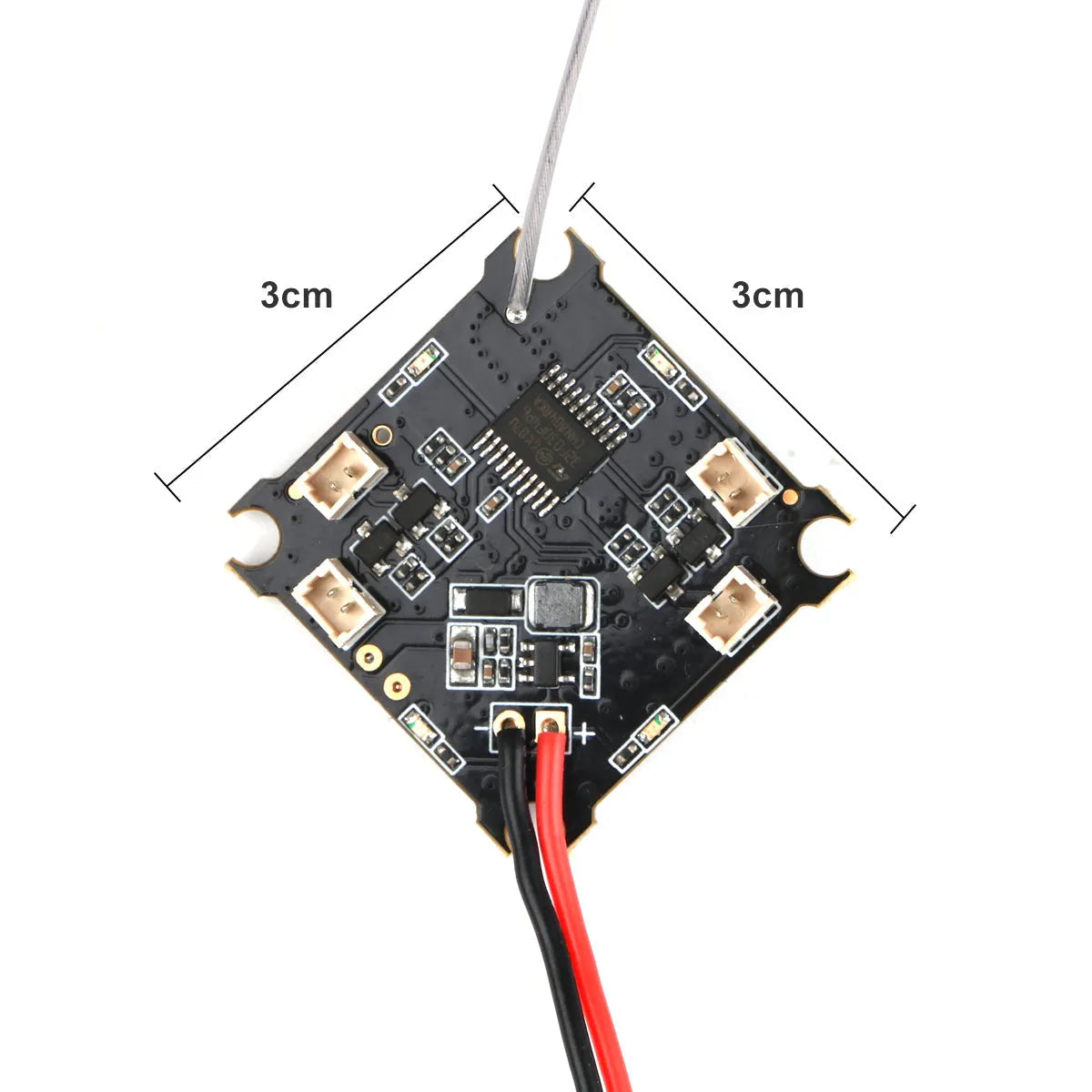

Dimensions: 26mm x 26mm, fully compatible with Inductrix four frames and mounting patterns
Firmware version: Silverware firmware (compatible with NFE_Silverware and BoldClash-BWHOOP-B-03)
Receiver: Basang Agreement

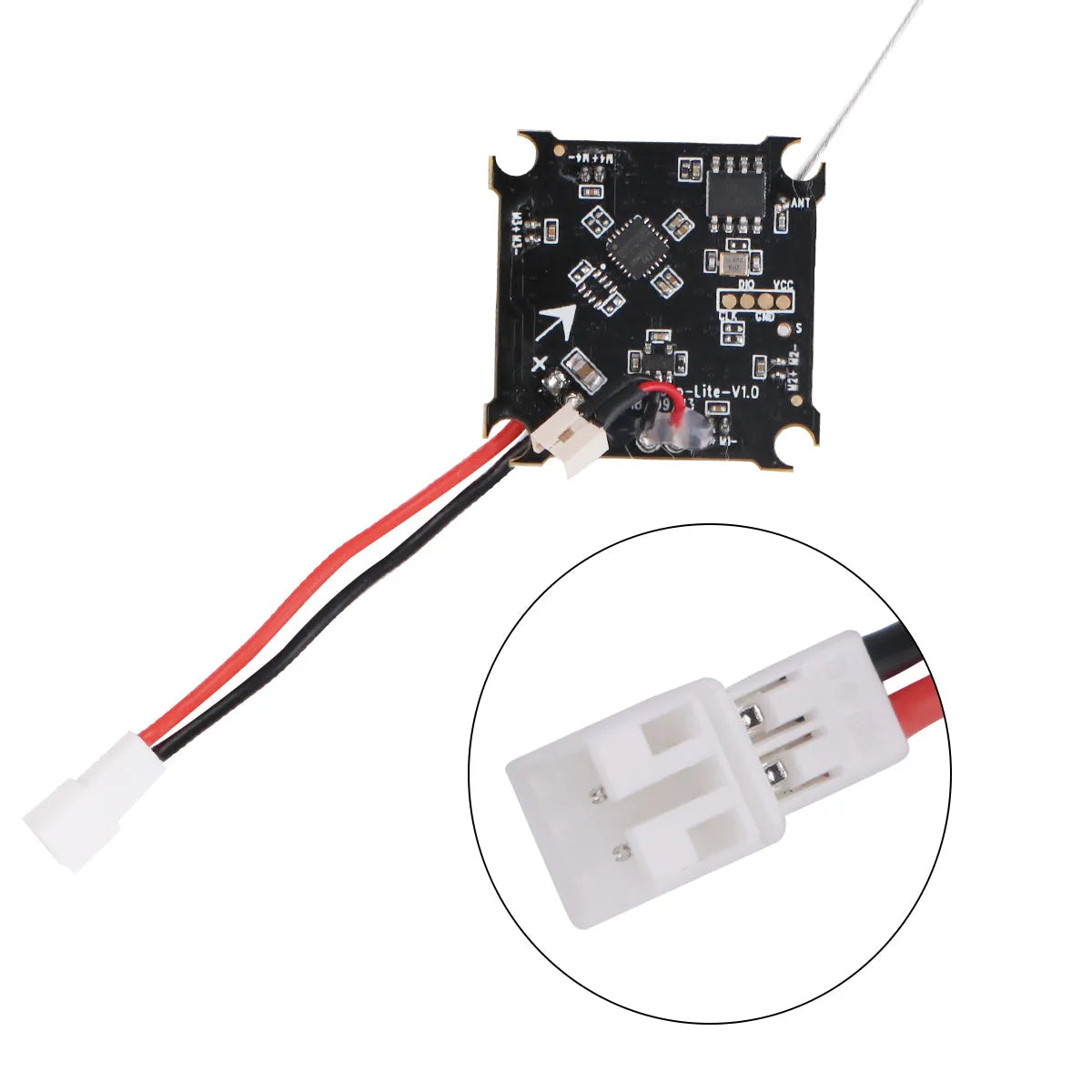

Power Cable: L=60mm, JST-PH 2.0

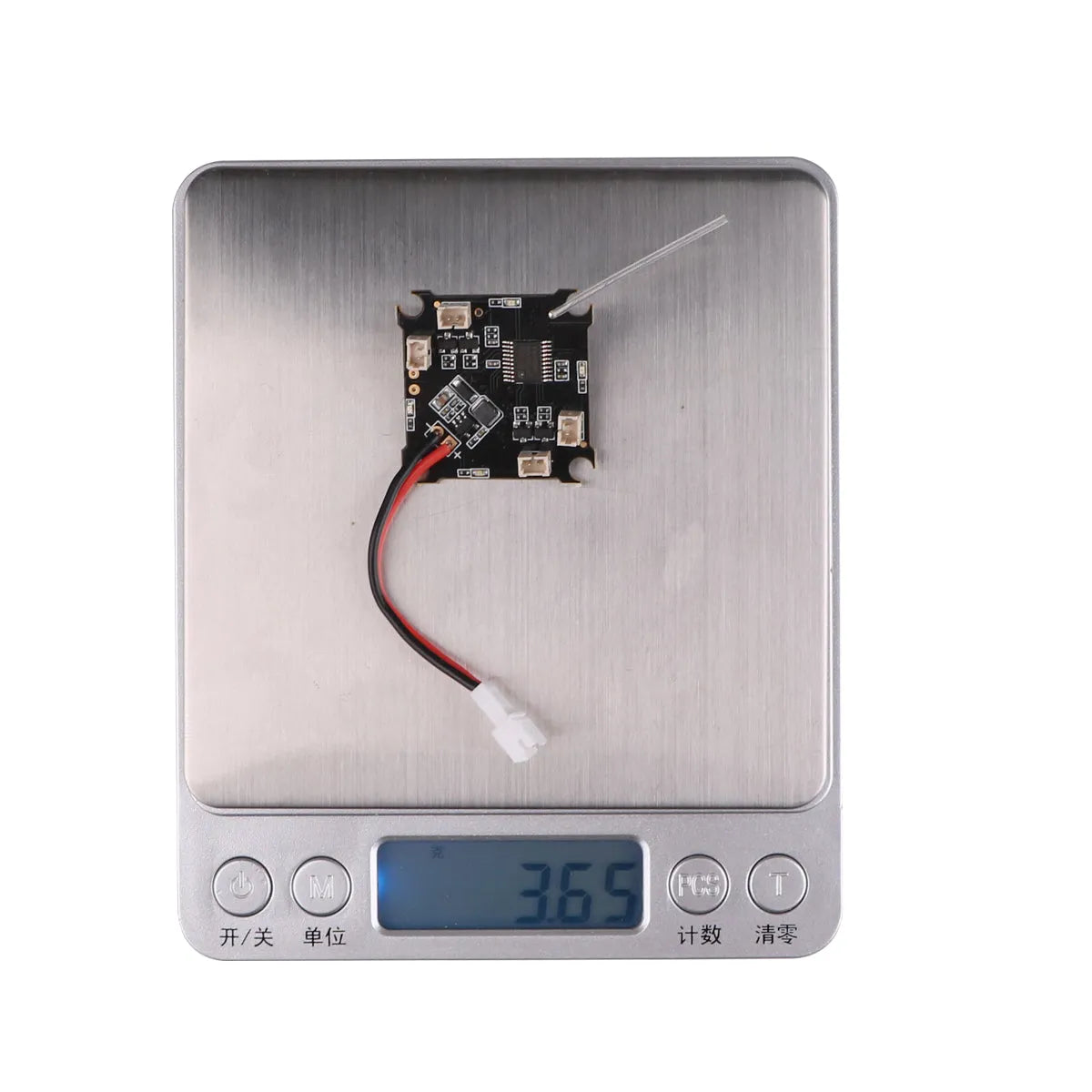

Weight: 2.0 grams

Supported radio transmitter
• Makerfire Tiny Lite RC
• Radio transmitters for toy drones which supports Bayang Protocol, such as JJRC H67, E011 etc.,
• Support T8SG radio transmitter
• MTX-9D multi-protocol module (for Frsky Taranis QX7 X9D X9D Plus X12S, Flysky TH9X, Turnigy 9XR / 9XR PRO)
• Other 4in1 multi-protocol modules supporting the Bayang protocol

The board has 2 LED indication states, including a red LED (on the front) and a blue LED (on the back).

1) When the red and blue lights flash slowly at the same time, it indicates the receiver is waiting to bind.
2) When the red and blue lights are solid on, it indicates radio and receiver are bind succesfully.
3) If the red light and green light flash slowly at the same time during the flight, and the motor stops rotating, it means that the flight control board enters the battery low voltage protection state and please stop to fly.
