1.2GHz 0.1/25/200/800mW A/V VTX Transmitter VRX Receiver 9CH 1060~1380MHz for Long Rang Drone

VTX Transmitter:
. Button control and LED light
1. 4 green lights represent frequency0.1mW0/25mW
D)/200mW(C)/800mW(H), Boot default is 0.1mW. Long press
of the button could switch into next frequency. Cycle the operation
every long press means the frequency switch and the light on. Notethe frequency needs to be adjusted every time the
power cut off
2. 9 red lights represent bandshort press could switch into nextband,
this operation can be cycled. Every short press means the band
switch and the light on. Notethe operation has the setting memory, the system
could save the current band when the power cut off
. Interface definition
1. The antenna type is SMA: The antenna head is "external thread +
hole", and the antenna rod is "internal thread + needle". It is equipped with a 1.2G special customized "Y" antenna
2.7P1.25 interface arrays
1).power input DC 7-28V;
2).input ground
3).video input
4). 6.5M audio input
5).DC output 7-28V;
6).DC output ground
7_.DC output 5V

VRX Receiver:
. Button control and LED light
1. 9 Red led lights represent the frequency, short press once to switch into next frequency. Cycle the operation, every short press means the frequency switch
and the light on.
Note: the operation has the setting memory, the
system could save the current frequency when the power
cut off.
. Interface definition
1.The antenna type is SMA: The antenna head is "external thread + hole", and the antenna rod is "internal thread + needle". It is equipped with a 1.2G special customized "Y" antenna
2.7P1.25 interface arrays
1). power input DC 7-28V;
2). input ground
3). video input
4). 6.5M audio input
5). DC output 7-28V;
6). DC output ground
7).DC output 5V.
3. 5P Pad definition array
1.power input DC 7-28V
2.input ground
3.video input
4.DC output 5V
5.DC output ground

Specifications:
VTX Transmitter:
Frequency band: 1060~1380MHz
Channel customer: 9
Channel Frequency: 1080/1120/1160/1200/1240/1280/1320/1360/1258(MHz)
Audio Sub-carrier: 6.5MHz/6.0MHz
Modulation type: FM
Frequency control: PLL
Audio sub-carrier control: PLL
Frequency Stability: ±100KHz (Typ.)
Frequency precision: ±200KHz (Typ.)
A/V Ratio: -26±2dB
S/N(Fo±3MHz): >70dBc
Channel Carrier error: 1dB
Antenna Port: 50 Ohms
Input format: NTSC or PAL
Video input level: 1V±0.2Vp-p type
Audio input level: 1V±0.2Vp-p type
Operating Temperature: -10℃~+60℃
Input power supply DC: 7-28V
Output voltage DC: 7.28V ; DC5V
Profile dimension: 45.5mmL*35.8mm(W)*8.4mm(H)
Installation hole position: 30.5mm x 30.5mm
Net weight: 10g

VRX Receiver:
DC Characteristics
POWER SUPPLY: 5.0V
Current Consumption: (280 ±40)mA

Environmental Specification
Operating Temperature: -10~+65 ºC
Storing Temperature: -30~+85 ºC
Operating humidity: 85%RH

RF
Receiving frequency range: 1050~1380MHz
Voltage Standing Wave Ratio: 2:1
Demodulation system: FM/PLL
IF: 480MHz
ANT. input impedance: 50Ω, Typ.
LO Frequency stabilization: ±200kHz
LO Frequency Precision: ±200kHz
LO Control: PLL
Input LO Leak: -65dBm
Receiving Sensitivity: -95dBm
Input Level Range: -95 dBm ~+5 dBm

Video Characteristics
Video Output impedance: 75Ω, Typ.
Video Output Level 1Vp-p, Typ.
Video Polarity NEGATIVE
Video Frequency Respone: ±5 dB, Max. 50Hz ~ 6MHz
Differential Gain: ±5 %, Max
Differential Phase: ±5 Deg., Max
3Db IF WIDEBAND: 16.5MHz
S/N: 38dB, Min
RSSI Output Voltage(-30dBm~-90dBm): 1.3~0.7V

Audio
Audio Output impedance: 2KΩ, Typ.
Audio Output Level: 1±0.2Vp-p, Typ.
Audio Output Frequency Range: 100Hz ~ 20kHz
Audio carrier: 6.0MHz(AR), 6.5MHz(AL)
Audio carrier precision: ±30kHz
S/N(50Hz ~ 15kHz): 50dB, Min
THD(50Hz ~ 15kHz, 3 Vp-p) 1.5 %, Max
Profile dimension: 44mmL*27mm(W)*27mm(H)
Net weight: 20g

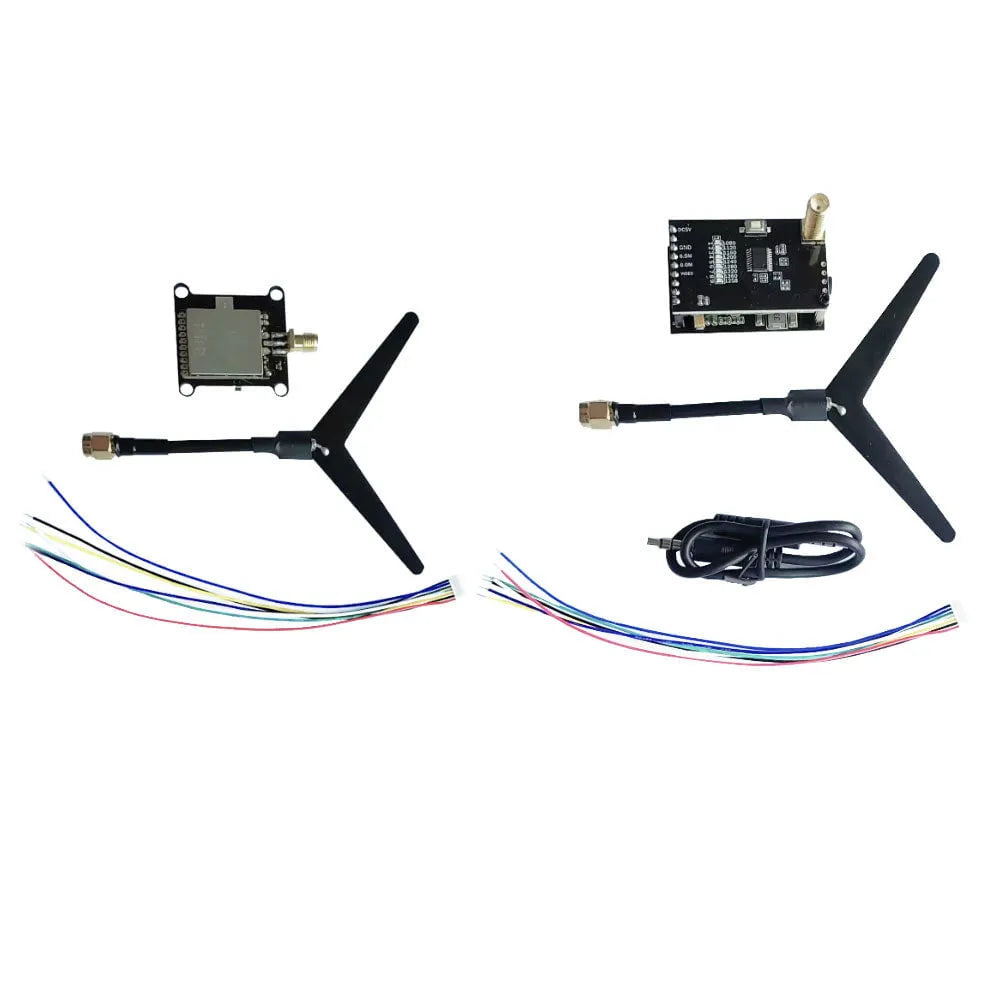

Package Included:

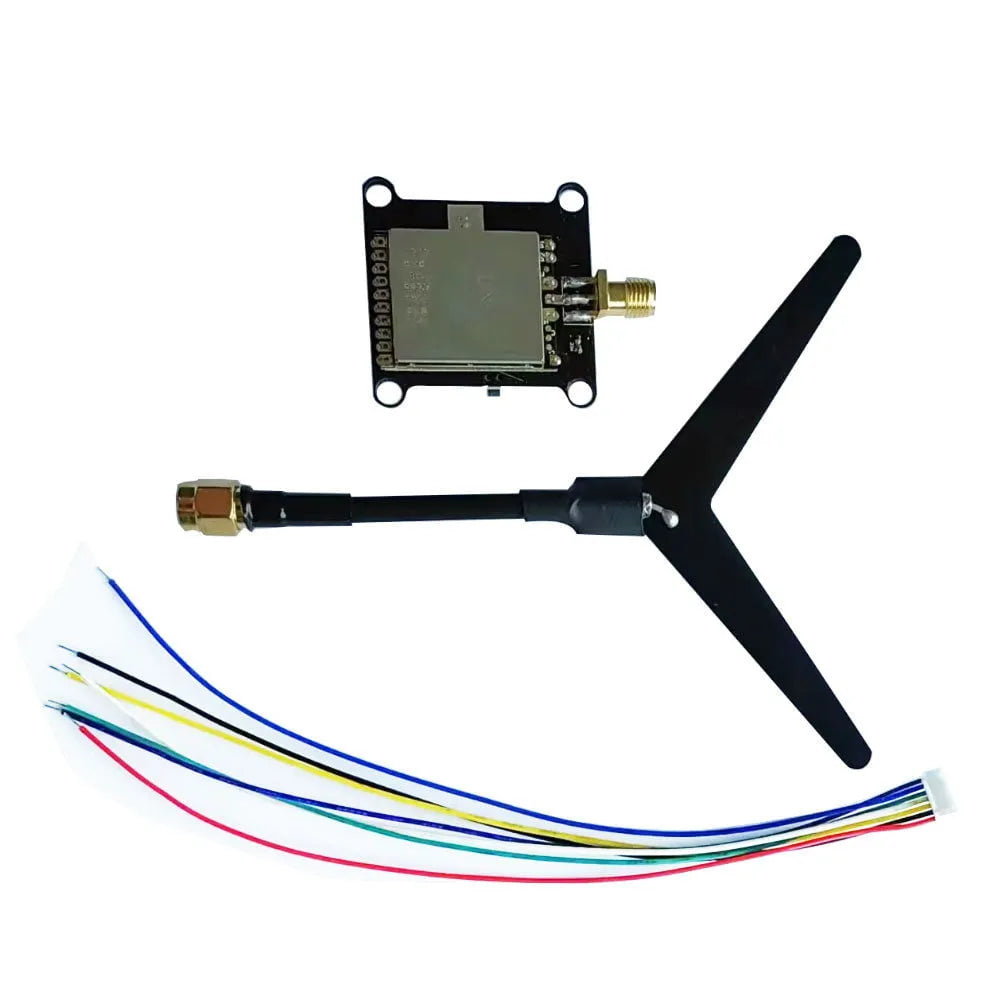

VTX Transmitter:
1X VTX module
1X “Y” type antenna
1X 7P 1.25 single head cable

VRX Receiver
1X VRX module
1X “Y”type antenna
1X Two-channel Video output cable
1X 7P 1.25 single1 head cable
