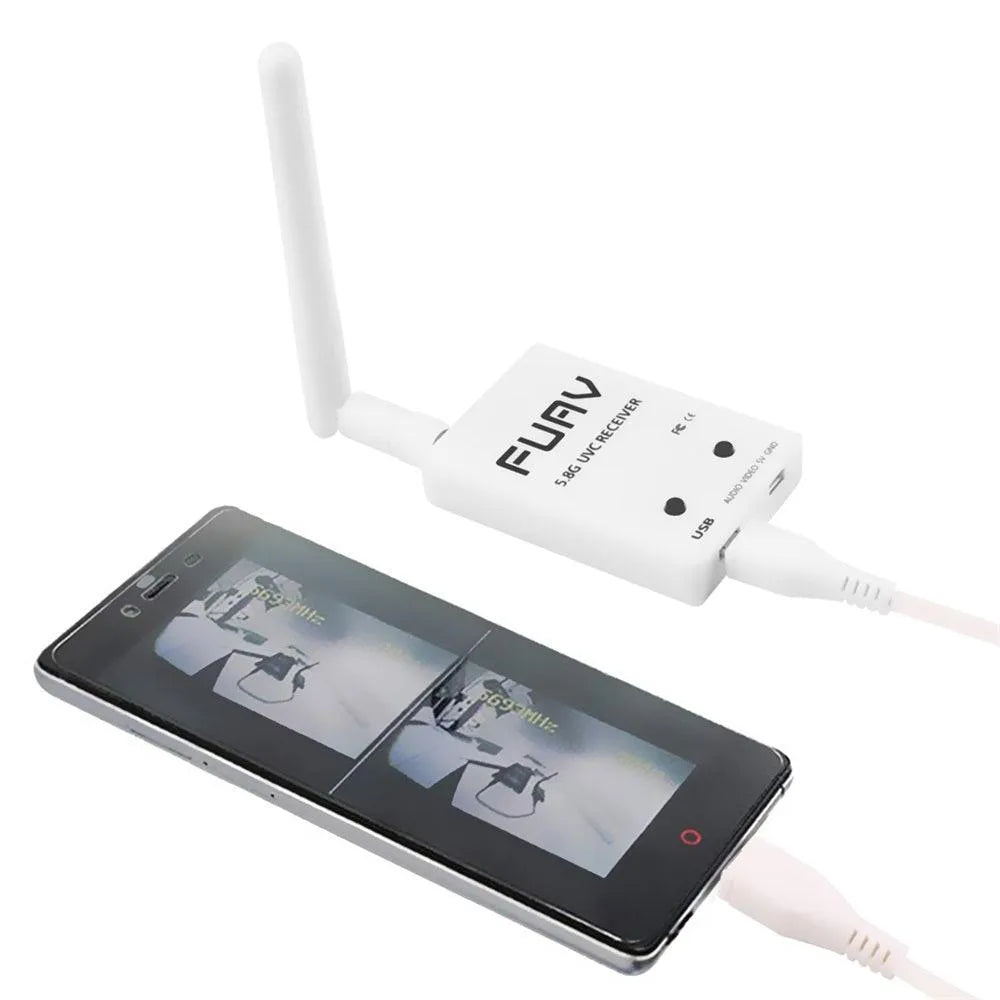

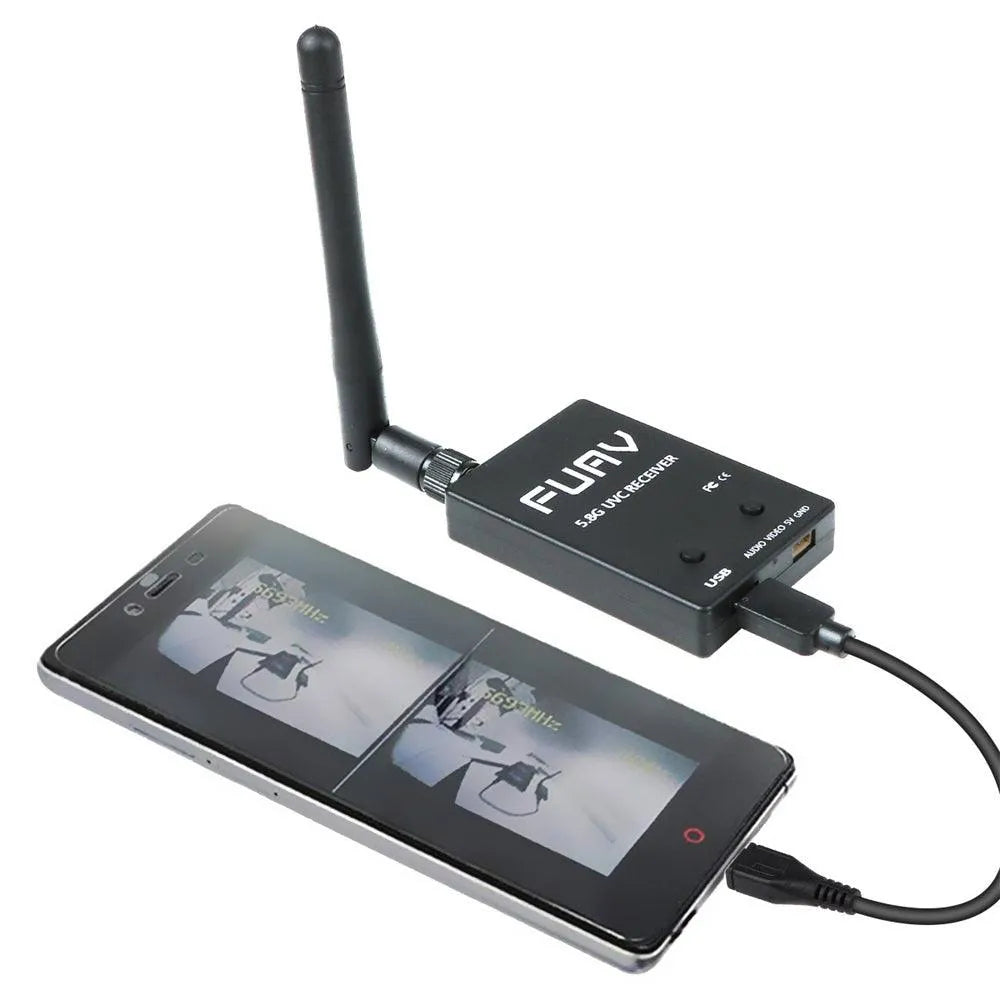

FPV Receiver 5.8G 150CH OTG Receiver UVC Video VTX 5dBi SMA Female Plastic for Android Smart Phone PC Monitor Black/White

Product description:
Color:Black
Channel: 150CH
Sweep ModAutomatic

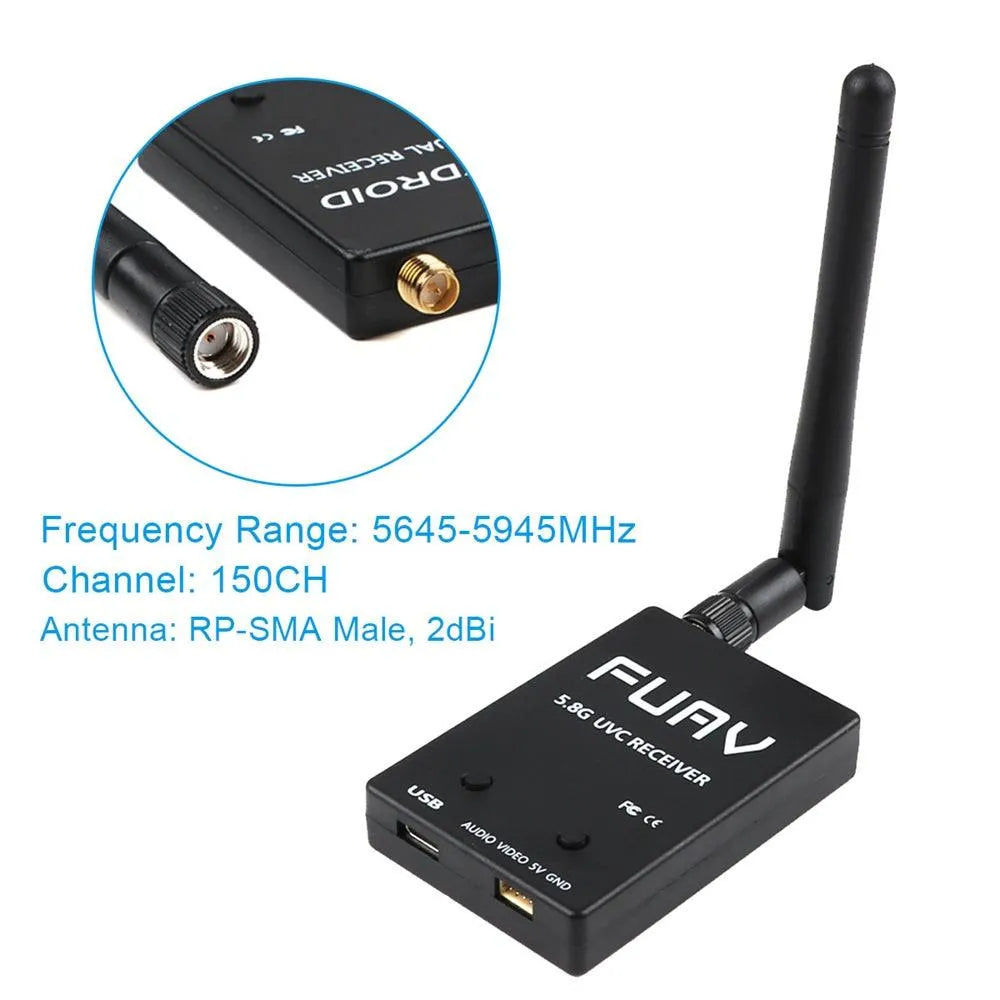

Frequency Range: 5645~5945MHz
Sensitivity: -90dBm

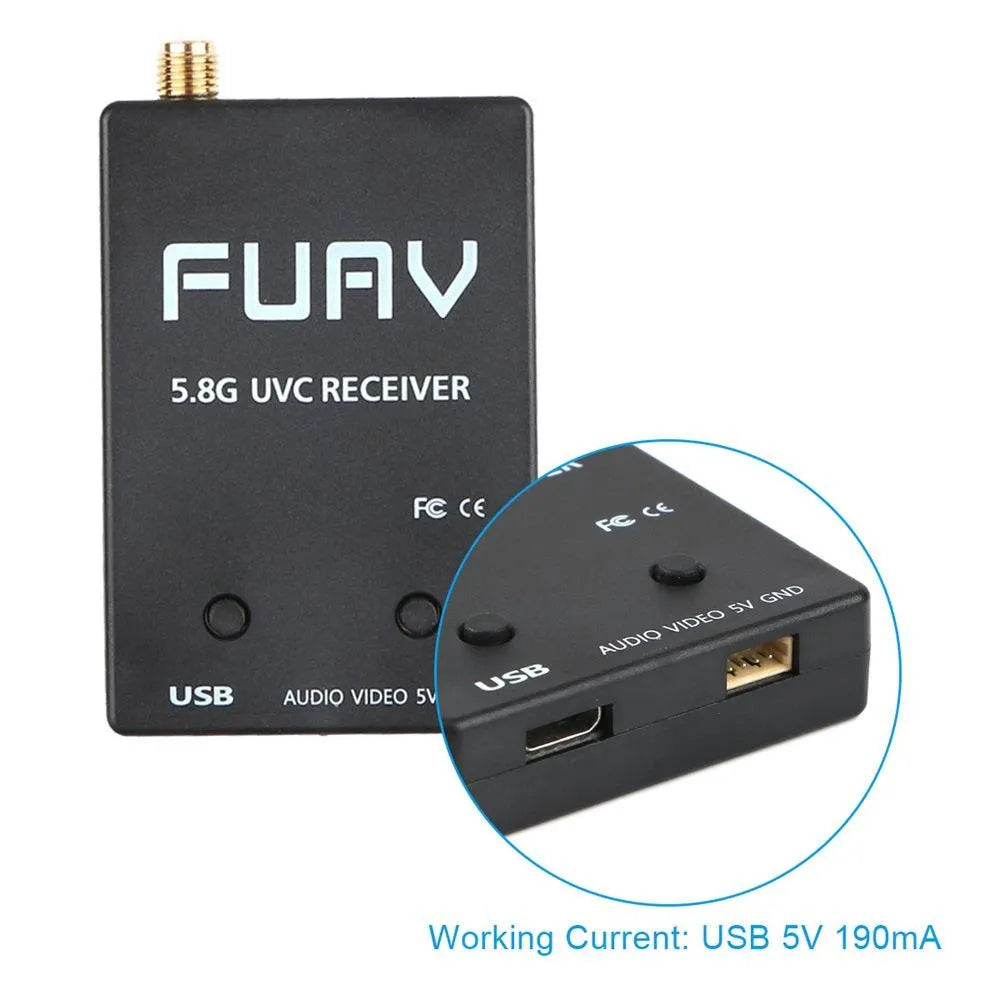

Working Current: 200mA/5V
Power Supply: 5V(by smart phone)
Operating Temperature: -10~60℃
Connector: SMA Female
Resolution: 640 * 480 30fps
Size: 59*40*11 mm
Net weight: 29g

Operation Instructions:
1. Download and install English version APP well;  APP Download Linkshttp://www.fuav.xin/download/skydroidfpv.apk )
2. Calibrate the Max. and Min. FPV signal value . ( Put the fpv vtx 20m-30m away in space place), then long press function button.
3.With power,long press 3s, entering into frequency actomatically.
4.Long press 3s, then input power, entering into the Max. and Min. Value.
5.Press 1s, OSD showed.

Here's the phone list support this receiver that we have tested.
For Samsung: S3(I9300, I9308) S4(I9500, I9507V, I9508, S5, S6, S6 For edge , ForS7edge, NOTE3, NOTE4, NOTE5, A5100, A8000, ON7, P600, N7100, N5100, Tab S2 etc.)
For OPPO: A31, A31C, A33, A51, A53, A33M, A51, A53, A5M, N3, FIND7, R7005, R7007, 3007, R2017, R8000, R8205, R8207, R7SM, R7 PLUS, R9 PLUS, etc.
For XIAOMI: For XIAOMI 3, For XIAOMI 4, For XIAOMI 4C, For XIAOMI5, For XIAOMI pad, For XIAOMI Red Note, For XIAOMI Red Note3, etc.
For HUAWEI: MATE8, C199, Honor8
For LG: GPRO2, G3, NEXUS5, L24, GPAD8.3, etc.
For Motorola: XPRO, NEXUS6, MOTO E, MZ617, etc.
For Sony: Z1, Z2, Z3, C3, SGP321, etc.

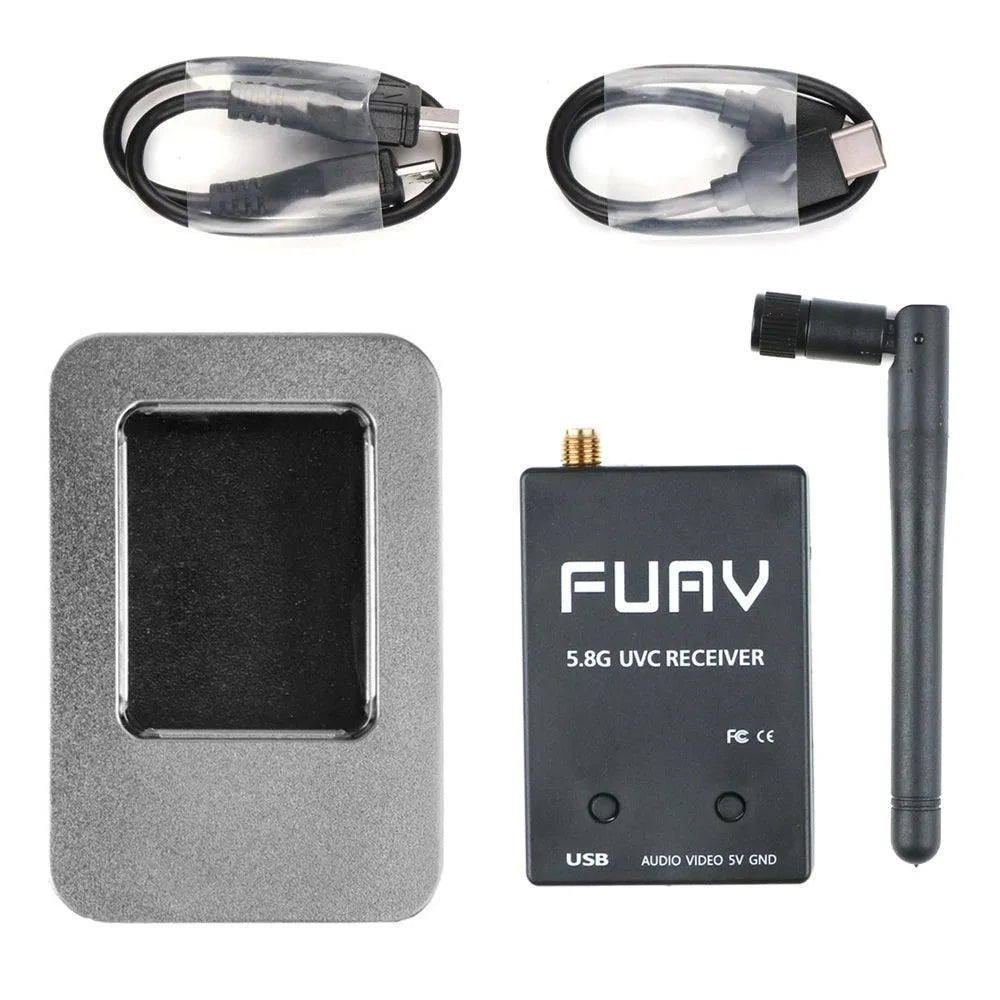

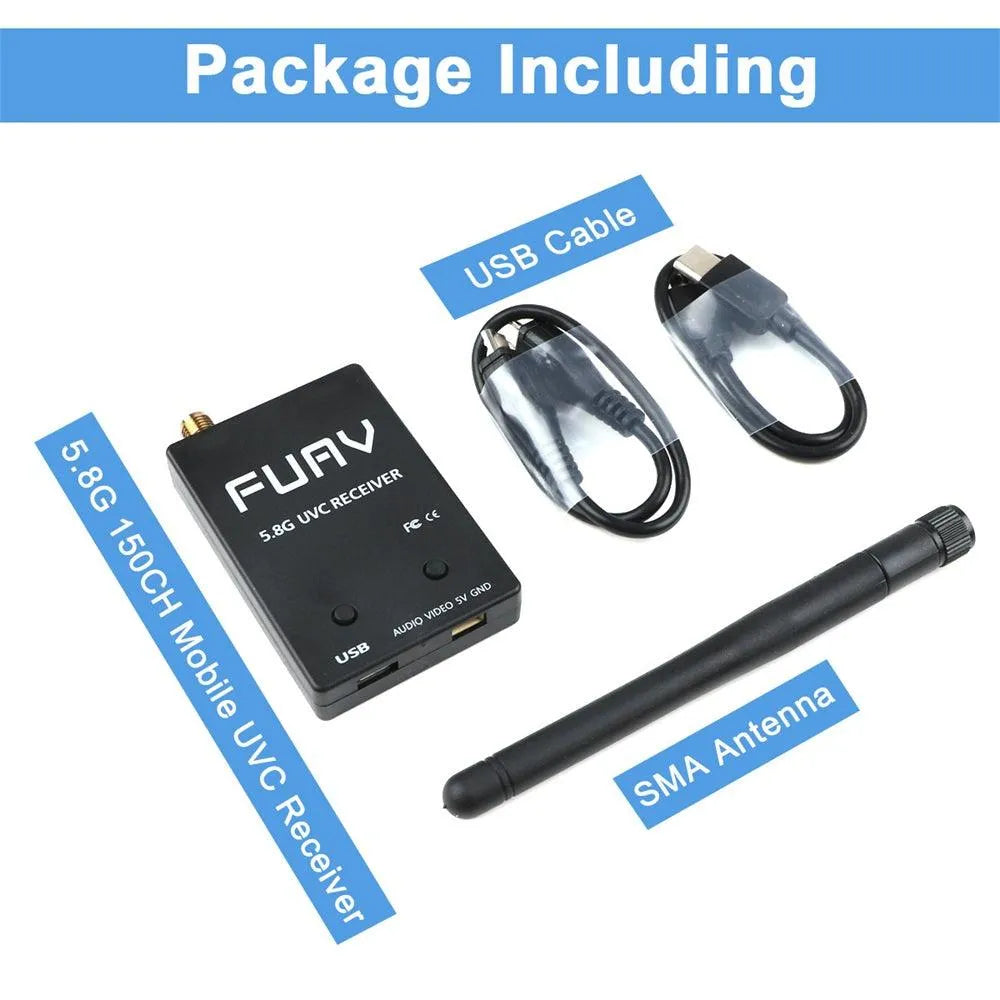

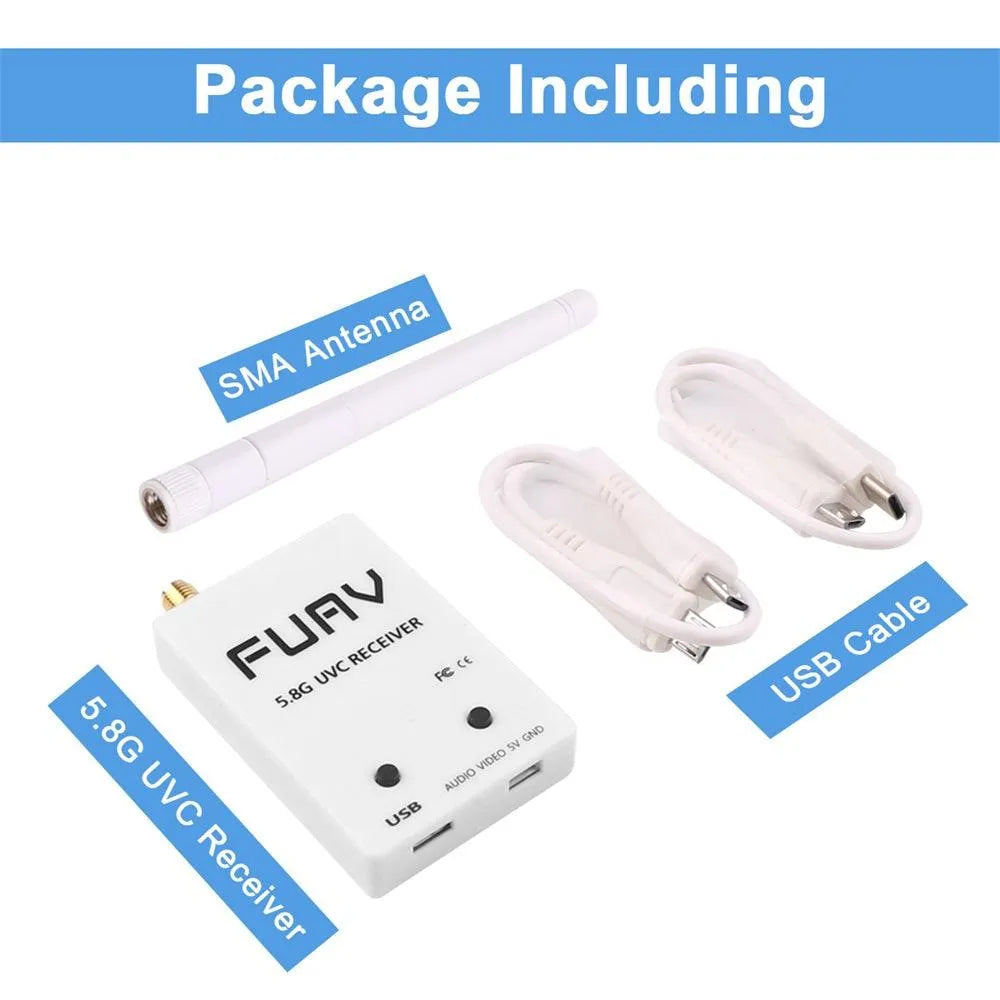

Package include:
1 * 5.8G 150CH Mobile UVC Receiver
1 * SMA-Antenna
2 * USB Cable
1 * Packing Box
