Description

The flight controller updated to CrazybeeF4 Lite v3.1 since 17th Feb 2022 ,please check the

Notice: The flight controller of DSM2/DSMX version Mobula6 has been updated to be CrazybeeX DXS V1.0 after Dec.9th 2020 , it has built-in DSM2/DSMX spi receiver , so it won’t come with an external Nano_sp09 receiver.

DXE / DX6E users are advised to purchase with caution, because the SPI program included in the current Betaflight firmware is not applicable to DXE / DX6E radio transmitters. We are working hard to improve and look forward to fixing it in the next version of Betaflight.

Features:
AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX
Extreme light 1S 65mm Brushless whoop only 20g
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Camera Angle adjustable

Specifications:
Brand Name: Happymodel
Item Name: Mobula6 1S 65mm Brushless whoop drone BNF version
Wheelbase: 65mm
Size: 80mm*80mm*37mm

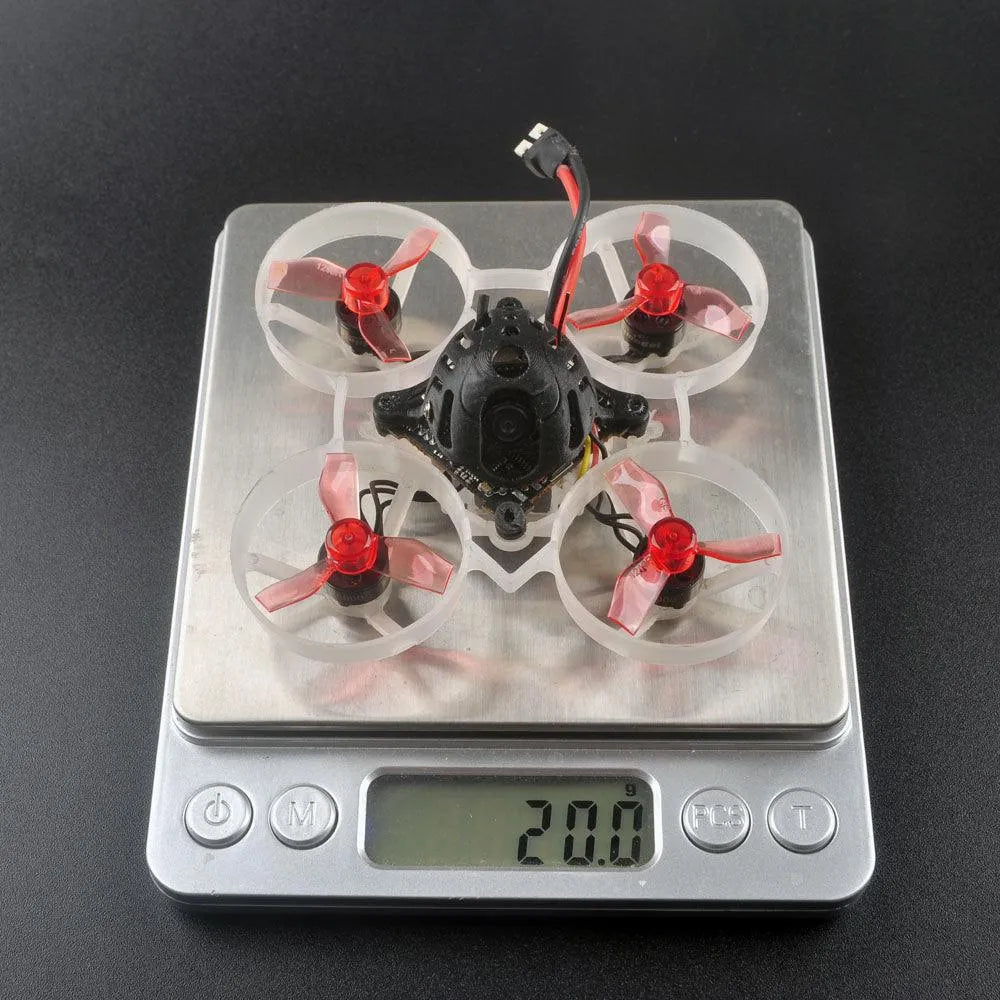

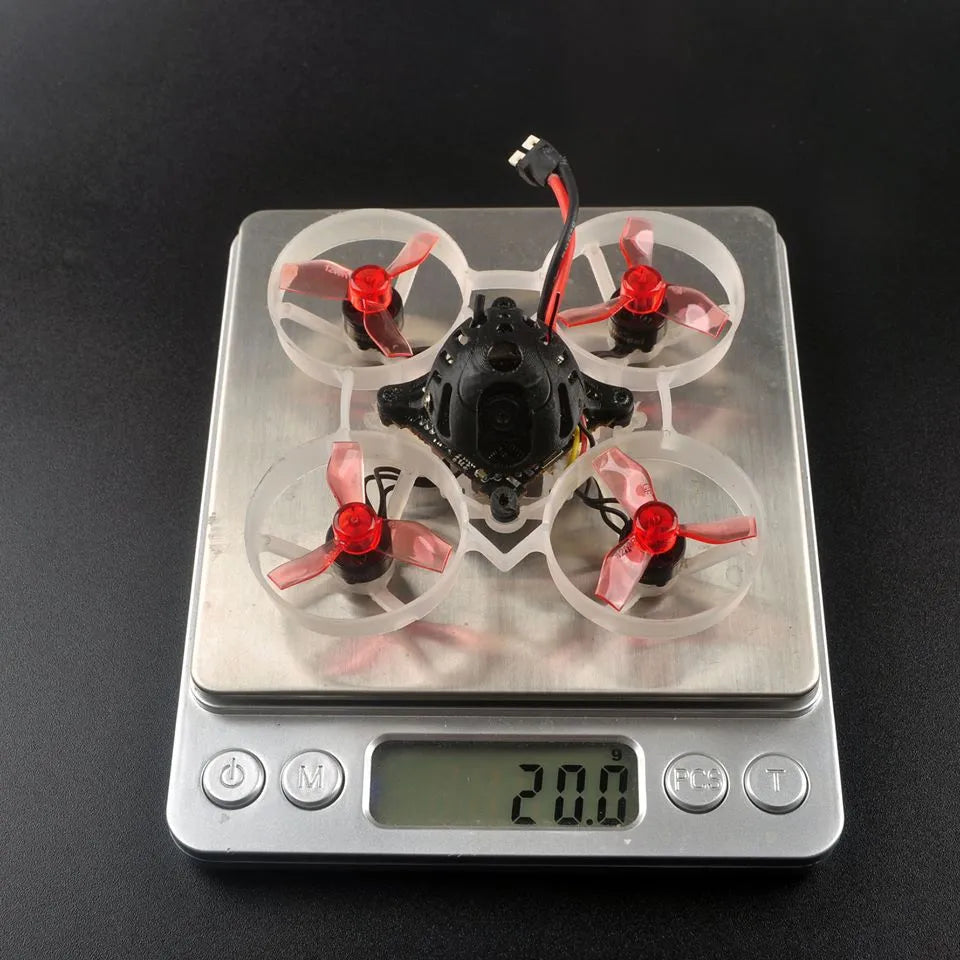

Net weight: 20g(without battery)
Takeoff weight: 28g

Receiver option:
Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)

Motor speed option:
SE0802 KV25000(Race Edition)
SE0802 KV19000(Regular Edition)

Package includes:

Item Name	Qty
Mobula6 1S 65mm whoop Drone Frame	1
SPI Receiver Option1: Crazybee F4 Lite FC built-in Frsky SPI D8 RX	1
SPI Receiver Option2: Crazybee F4 Lite FC built-in Flysky SPI RX	1
SE0802 KV19000 or KV25000 brushless motor	4
Gemfan 1219-3 Propellers(4cw+4ccw)	1
Runcam Nano3 1/3 CMOS 800TVL camera	1
5.8G 25mw 40ch vtx (Flight controller built-in)	1
	4
1S Lipo/LIHV USB Charger	1
Propeller disassemble tool	1

Version	Receiver
Race Edition 25K motor	Frsky
Race Edition 25K motor	Flysky
Regular edition 19K motor	Frsky
Regular edition 19K motor	Flysky

Spare parts specifications:

Motor	Mode: SE0802 19000KV or KV25000 Configu-ration:9N12P Stator Diamter:8mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.Len):Φ10.5mm14.9mm Weight(g):1.9g No.of Cells(Lipo):1S only
Propellers	Gemfan 1219-3 Center Thickness:5mm Prop Disk Diameter:31mm Center Hole Inner diameter:1.0mm Weight:0.28g

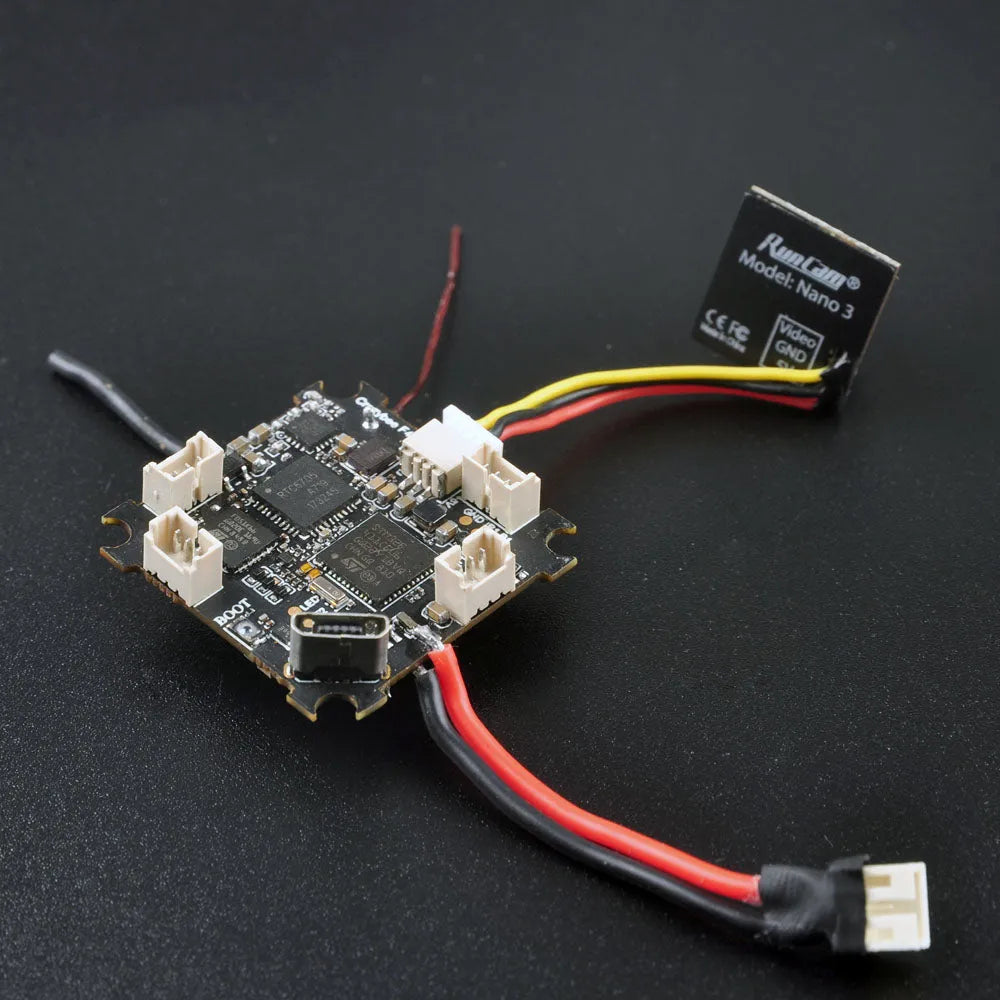

CrazybeeF4 Lite v3.1 (updated since 17th Feb 2022)	(Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR (Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS (DSM2/X SPI RX version) CRAZYBEEX DXS DSM2/X version firmware target: CrazybeeF4DXS MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: ICM20689(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI Frsky/Flysky receiver Built-in 5V 1A BEC Built-in voltage detection
Onboard 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Frsky/Flysky version Factory firmware: O_H_5_REV16_7.HEX DSM2/DSMX version Factory firmware:S_H_50_REV16_8.HEX Default protocol: DSHOT600
Onboard Frsky SPI D8 receiver Version	SPI BUS receiver Frsky D8 compatible Compatible Non EU transmitter D8 model Channels: 8ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
Onboard Flysky SPI receiver Version	SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m Failsafe support
Onboard 5.8g VTX (Openvtx)	Output power: 0mw~400mw Frequency: 48CH Input voltage: 3.3V~5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 48 channels With Race band Smartaudio ready
Runcam Nano3	Model: RunCam Nano 3 Image Sensor: 1/3" CMOS Horizontal Resolution: 800TVL Lens : 2.1mm(M8) FOV 160° Signal System: PAL/NTSC Non Switchable S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: [email protected] D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA@5V [email protected] Housing Material: ABS Net Weight: 1.2g Dimensions: L14mmW14mmH9mm
Lipo Battery	Capacity:300mAh Voltage:3.8v Continuous Discharge Rate: 30C Size: 57mmx12mmx7mm Weight: 8g Connector: PH2.0
