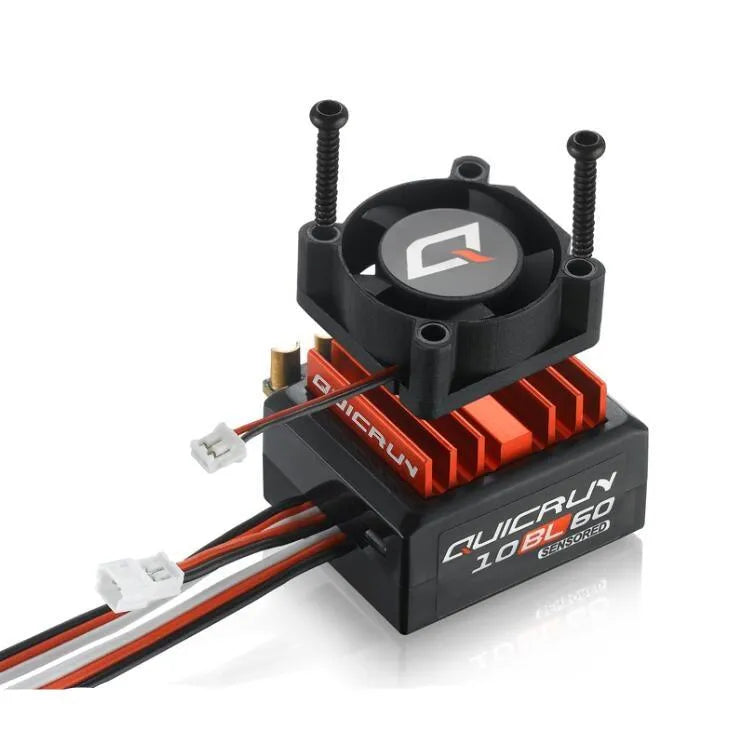

Hobbywing QuicRun 10BL60 60A Brushless Sensored ESC Speed Controller

Features:
Easy Operation
Compact Design&SD/SL Dual Mode Supported
High Reliability & Durability
Efficient Cooling System
Single-button Programming & Factory Reset
Wide Applicability
This ESC is designed for practice and daily training of1/10th, 1/12th scale touring cars, buggies, and F1.

Specification:
Scale:1/10th
Brushed/Brushless:Brushless
Sensored/Sensorless:Sensored
Waterproof:No
Cont./Peak Current:60A/360A
Input:2-3S LiPo/6-9 Cell NiMH
BEC Output:Linear Mode:6V/2A

Wires & Connectors
Input Wires:Red-12AWG-200mm*1/Black-12AWG-200mm*1
Output Wires:Blue-12AWG-200mm*1/Yellow-12AWG-200mm*1/Orange-12AWG-200mm*1
Input Connectors:No
Output Connecotors:4.0 Gold Connector(Female)
(Note: All the wire length above is the original length not the length you see from the outside.)

Fan
Size:25.0x25.0x10.0mm
Voltage Range:5-7.4V
Powered by:Powered by BEC

ESC Programing via
SET Button on ESC:Supported
LED Program Box:Supported
LCD Program Box:Not Supported
WiFi Module:Not Supported
OTA Programmer:Not Supported
Program Port:FAN/Program Port

Firmware Upgrade:Not Supported

Size:33x28x31.5mm (w/Fan)
Weight:59g

Applications
Motors:SL BL Motors/SD BL Motors
Vehicles:1/10^thTouring Cars/Buggies/Drift Cars/F1
KV Rating/T Count:
22S LiPo: 1/10^th Touring Cars≥8.5T, 1/10^th Buggies≥13.5T 3S LiPo: 1/10^th Touring Cars≥13.5T, 1/10^th Buggies≥17.5T (3650 Motors)

Programmable Items
Installation & Connection

1*10BL60 60A Brushless Sensored ESC
