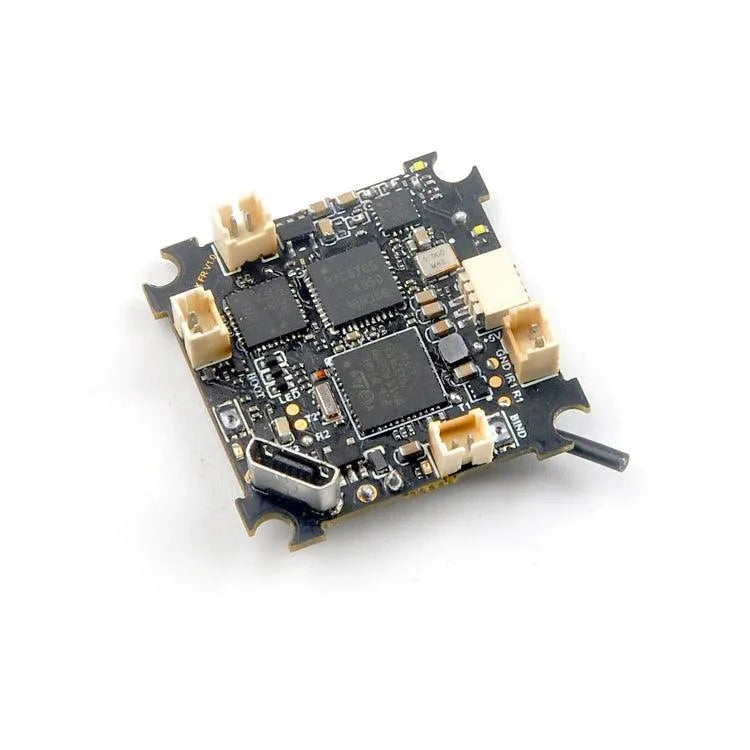

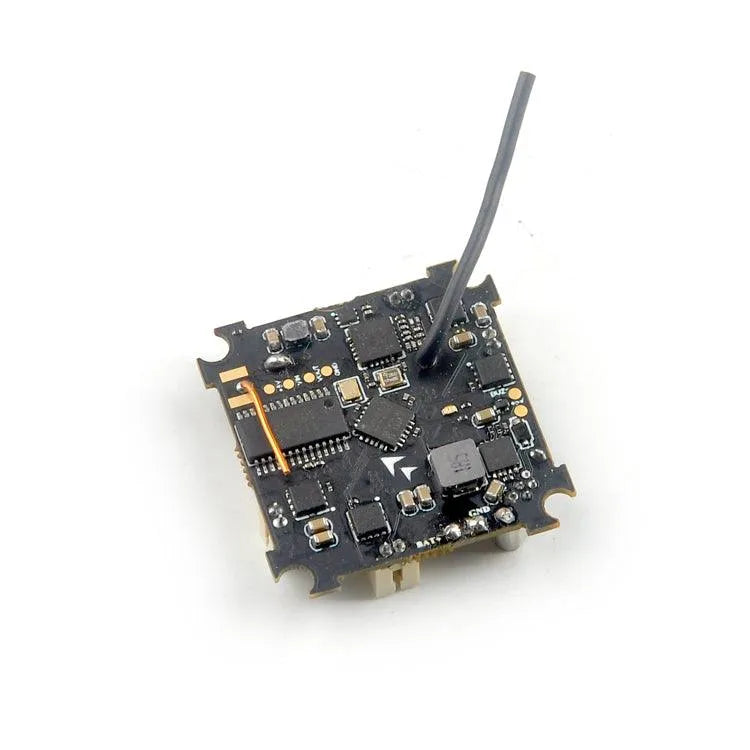

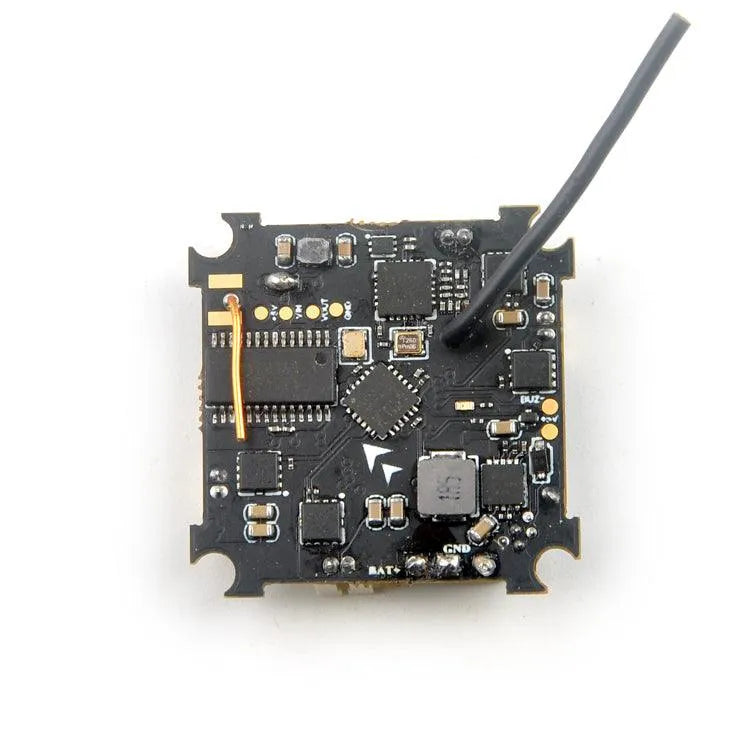

Happymodel BeecoreX FR Brushed F4+ESC +VTX+RX+OSD Flight Controller For Inductrix Tiny Whoop E010 E010S - Frsky Receiver

The BeecoreX is a ultimate flight controller for Brushed Tinywhoop , it include F4 FC, vtx , ESC, frsky receiver and betaflight OSD. It makes very easy to build a brushed tinywhoop. You only need to buy an FPV camera and brushed motors ,frame and propeller and then plug and play , No soldering require at all.

Specification:
Flight controller
(Frsky SPI RX version) Betaflight Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Brushed 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX 25mw~100mw switchable
Built-in SPI Frsky receiver(compatible with Frsky_D/ Frsky_X/ S-FHSS/ Redpine protocol)
Built-in 5V 1A BEC
Built-in voltage detection

Onboard Frsky SPI  receiver Version
SPI BUS receiver Frsky version
Compatible with Frsky D8/D16 ( D8 is recommend) , S-FHSS , Redpine protocol
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
RSSI compatible

Onboard 5.8g VTX
Output power: 25mw~100mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready
VTX POWER=1 (25mw)
VTX POWER=2(50mw)
VTX POWER=3(100mw)
Recommend to use 50mw

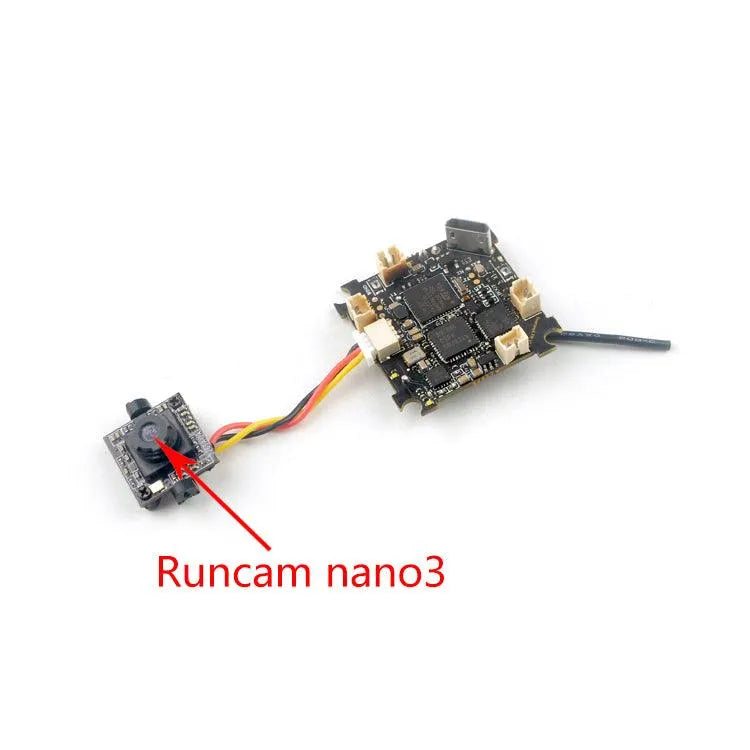

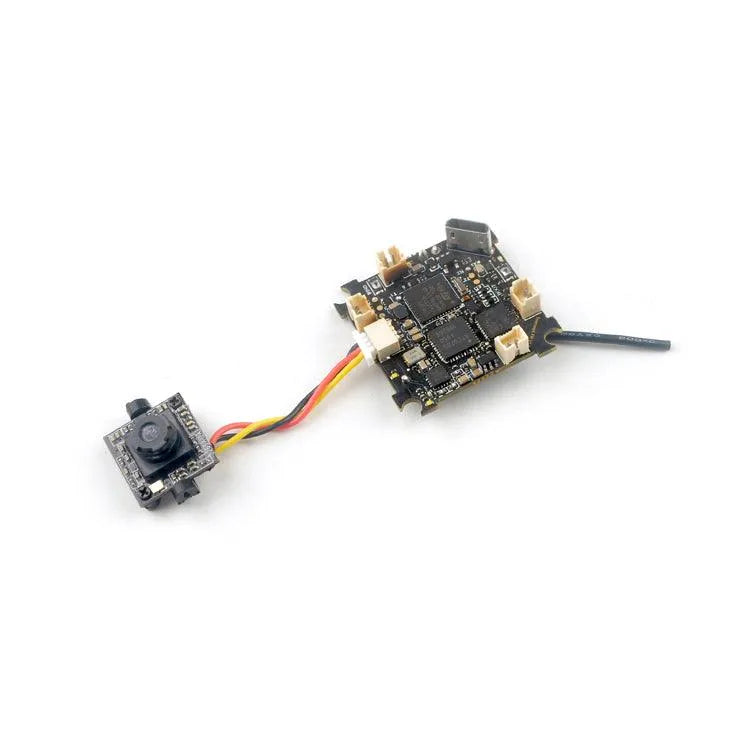

Recommend Runcam Nano3 camera , plug and play

Notes:

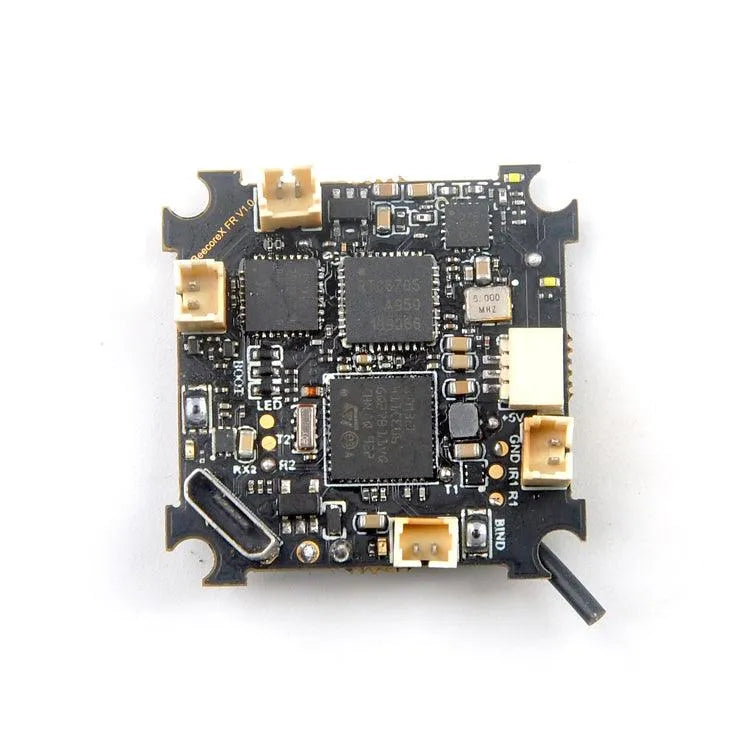

R1(RX1) Pad is used for IBUS/DSM2/DSMX signal input
IR1(IRX1) Pad is used for SBUS signal input (Already inverted)
R1 and IR1 Cannot be used simultaneously

Package Included:
1*BeecoreX FR Brushed Flight Controller
