This is the updated version for Darwin AIO. We integrated the ELRS receiver on the FC to make it easier to apply to the mini Drone. ESC adopts Bluejay firmware and is compatible with 1-3S Lipo input, and the maximum current reaches 17A.FC provides 2 sets of Uarts interfaces and at the same time provides various external devices interfaces such as SBUS, Softserial, CTR, BUZZ, RGB and so on , which perfectly solves the problem of insufficient quantity of F411 Uarts.
Specification:
FC MCU: STM32F411CEU6(100MHz)
IMU: ICM-20689(SPI)
OSD: Betaight OSD AT7456E
RF: SX1280(2.4GHz)
BEC output: 5V/2A & 3.3V/0.2A
Firmware target:betaflight_4.3.0_BETAFPVF4SX1280
2x Uarts(1,2)
1x SBUS(RX1 inverter)
1x Softserial_TX option
1x External USB solder pad
1x CRT(Current)
1x BUZZ
1x RGB
ESC MCU: EFM8BB21F16G
Input Voltage: 1-3S LiPo
Continuous current: 15A
MAX current (5seconds): 17A
ESC Traget: Bluejay_S_H_50_48_v0.14
Size: 37x36x10.8mm
Installing Hole:25.5x25.5mm(M2)
Weight:5.0g

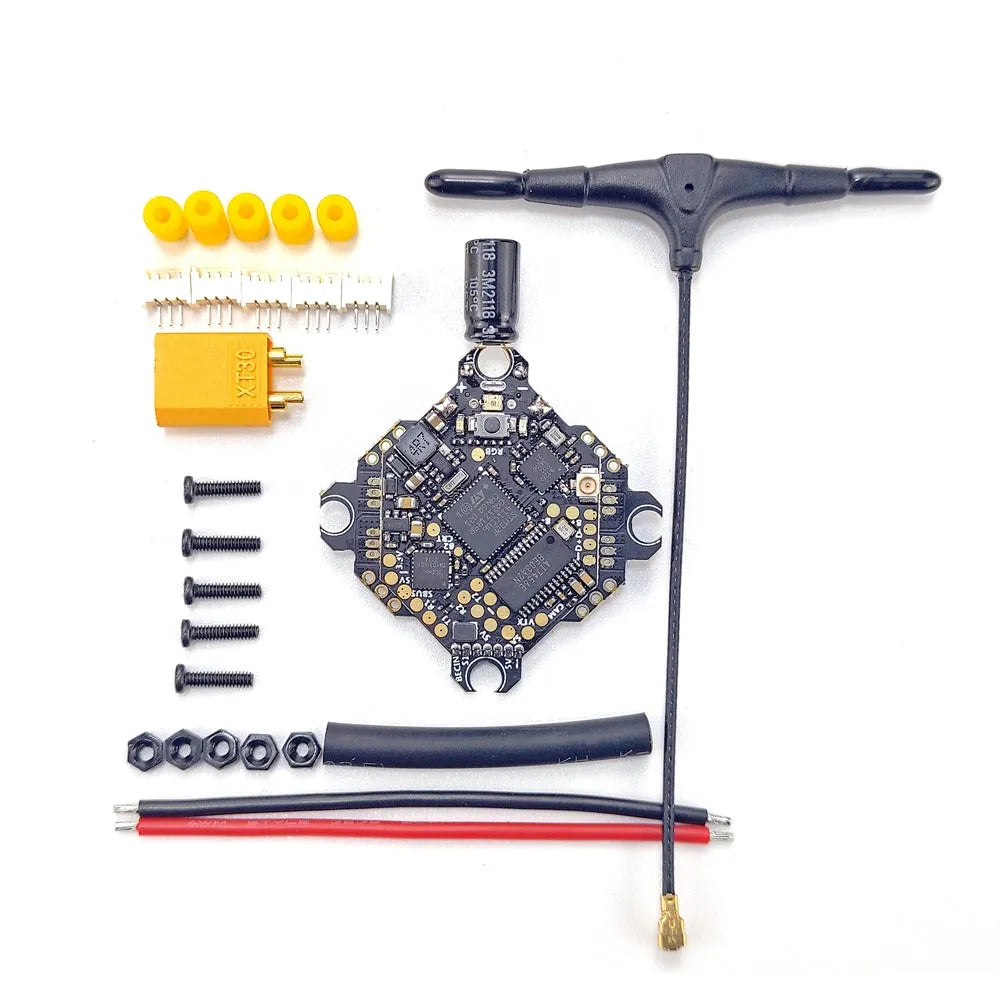

Package Included:
1*ELRS2.0 F411 15A Bluejay AIO
