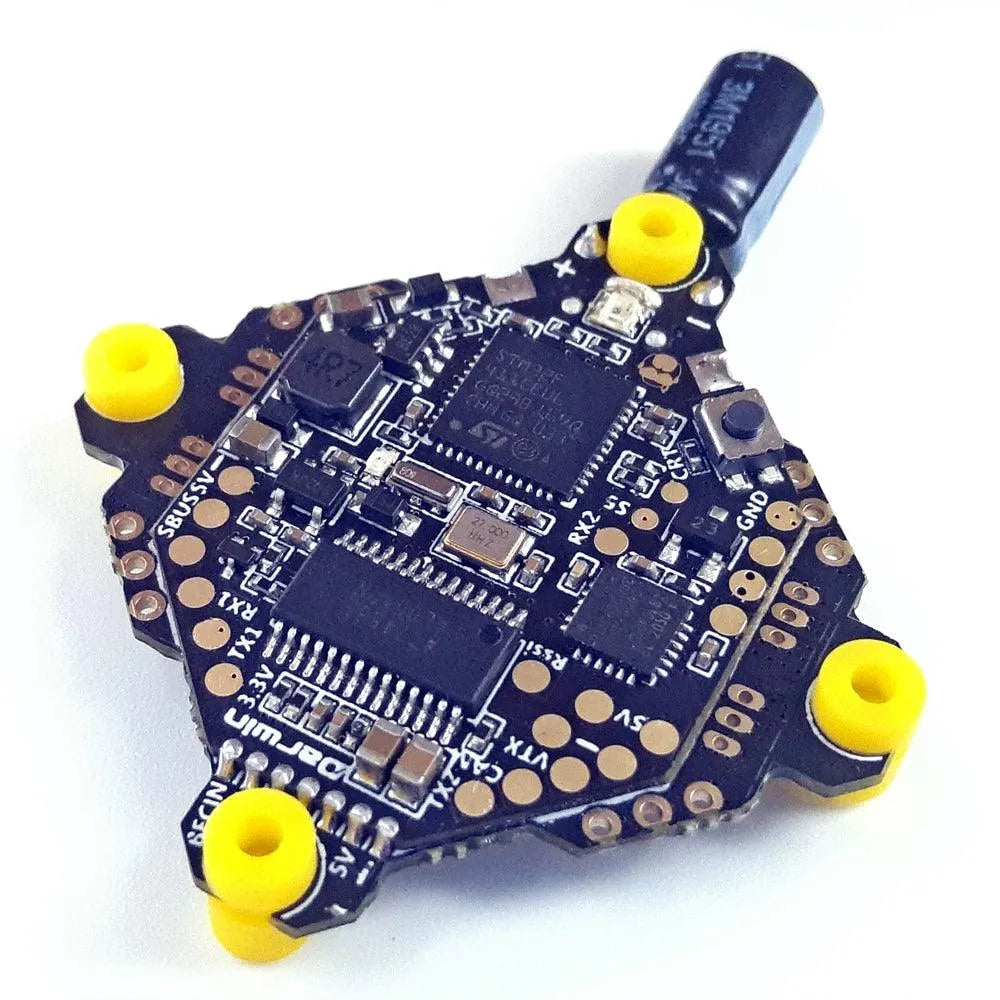

DarwinFPV 15A 1-3S F411 AIO great for Ultralight and Whoop builds! Capacitor Pre-soldered for convenience!

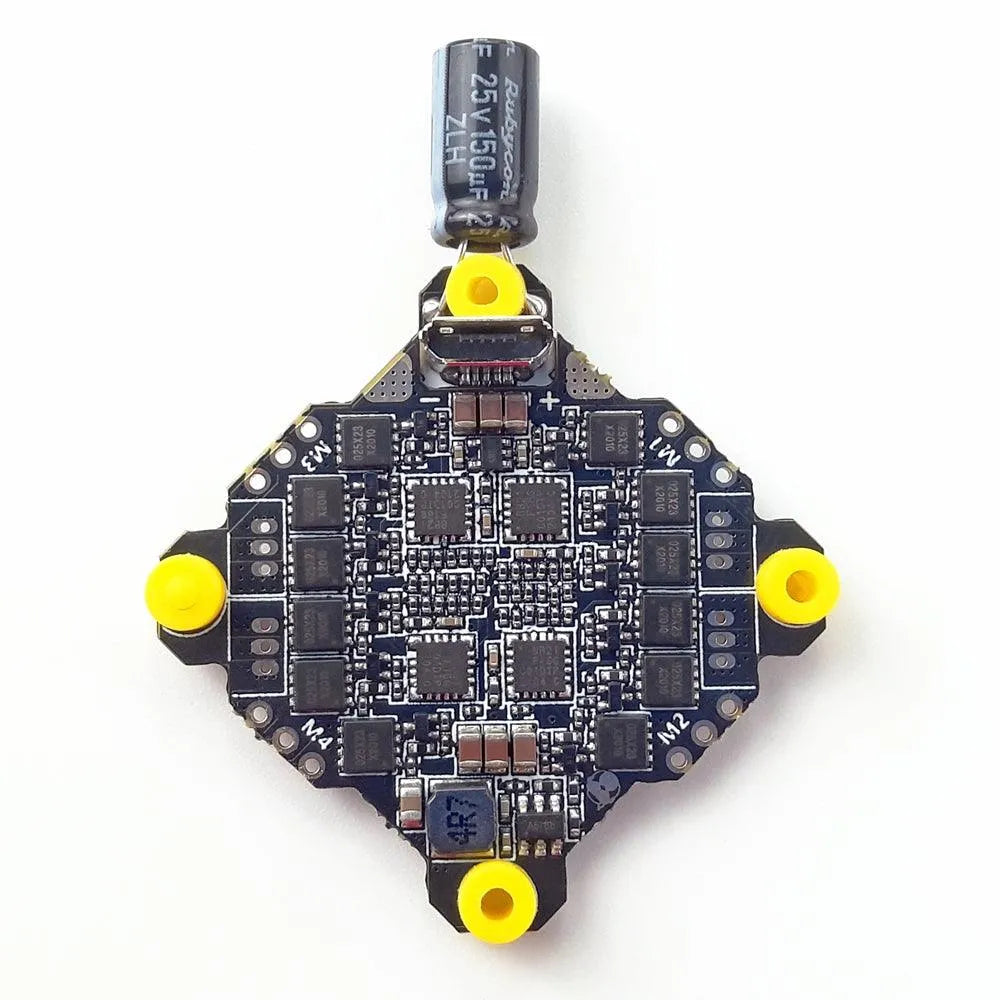

ESC Specifications
Input voltage: 3.7 ~ 13V DCIN(1 ~ 3 6slipo)
Constant current: 15A
Peak current: 17A
BEC Output: No
Mcu: 48mhz efm8bb21f16g protocol: dshot/oneshot/multishot blheli_s
firmware target: SH-50
Telemetery: No
Current Sensor: No

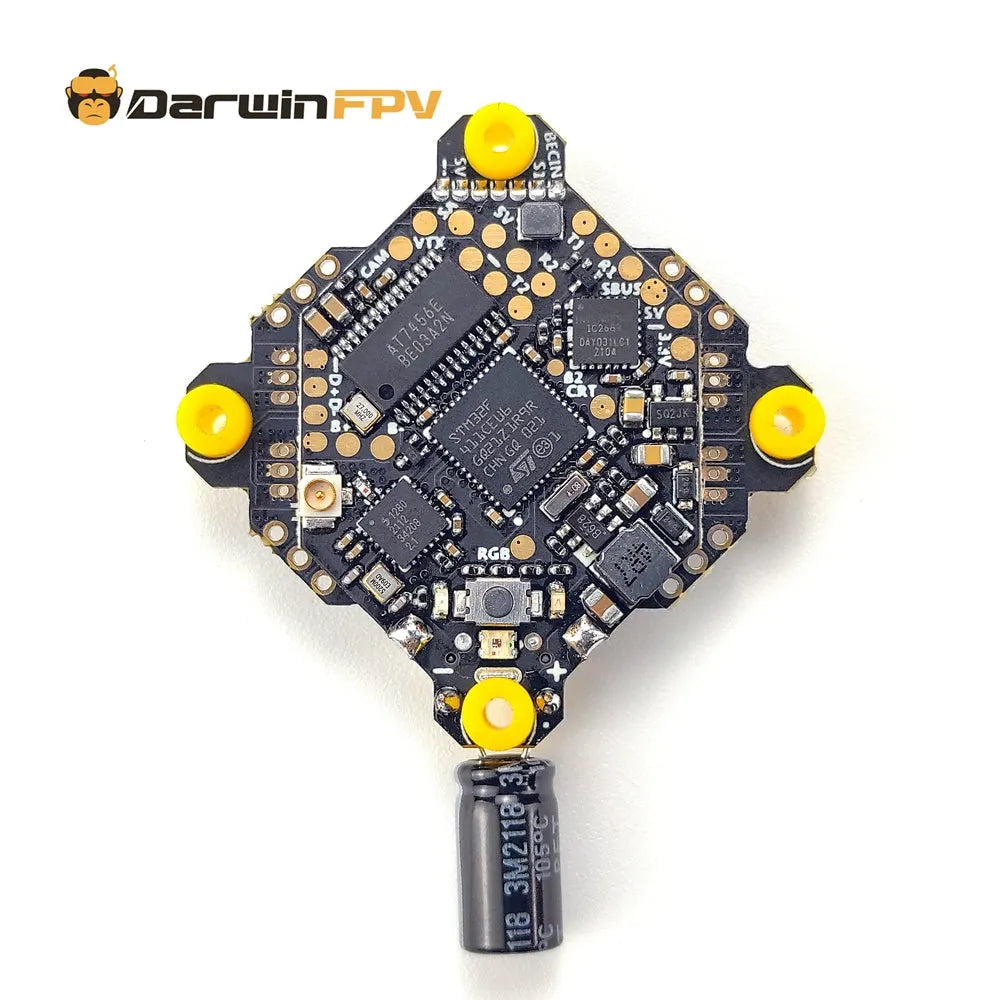

Flight Controller
Mcu Specifications : 100mhz stm32f411ceu6
Imu: MPU6500 (spi) or ICM20689
Baro: No
Blackbox: No
OSD:AT7456E
2xuarts (1,2)
Built in drive for sbus input (UART1-RX) 1xsoftserial supported (s5)
3.7 ~ 13V DCIN(1 ~ 3 6slipo)
Bec: 5v 2nd cont.(max 2.5a )
LDO3.3V:Max 200mA
Battery voltage sensor: 1:10 (scale110)
BetaFlight target: MATEKF411

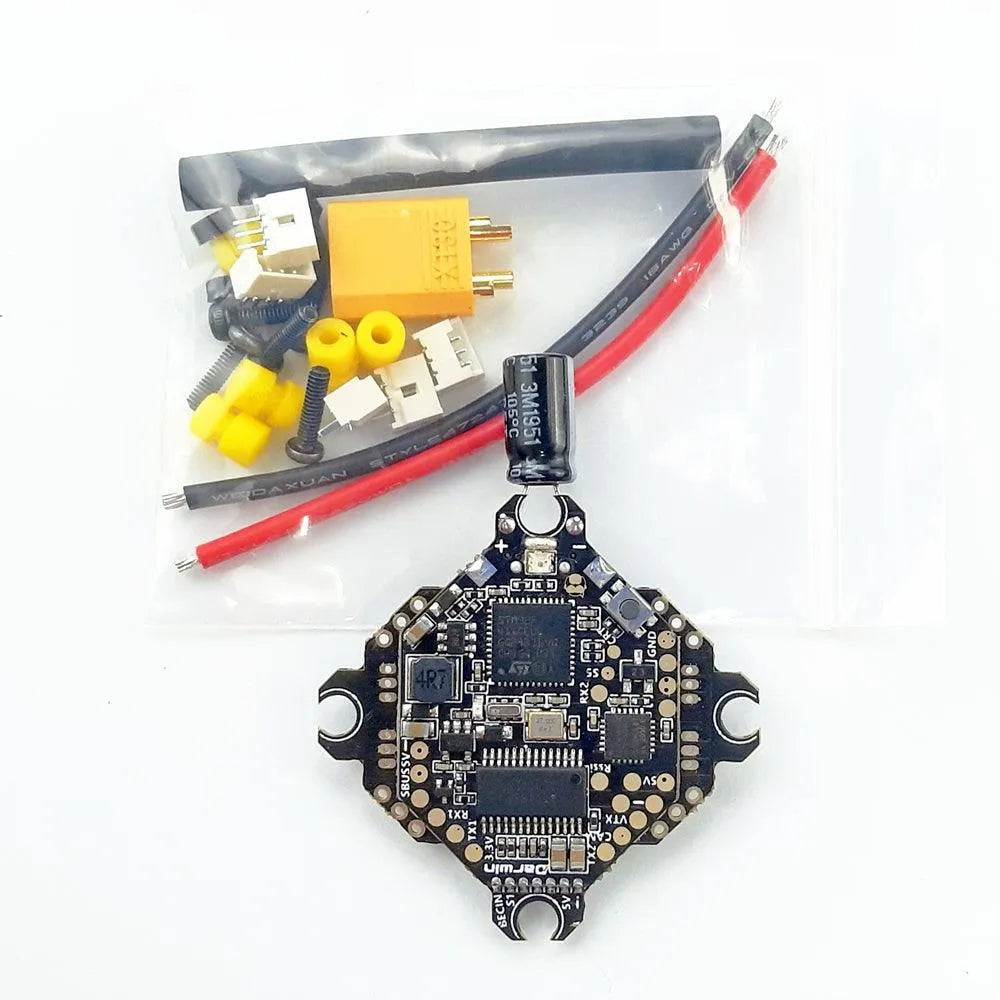

Package Included:
1 x DarwinFPV 15A 1-3s Ultralight/Whoop AIO
